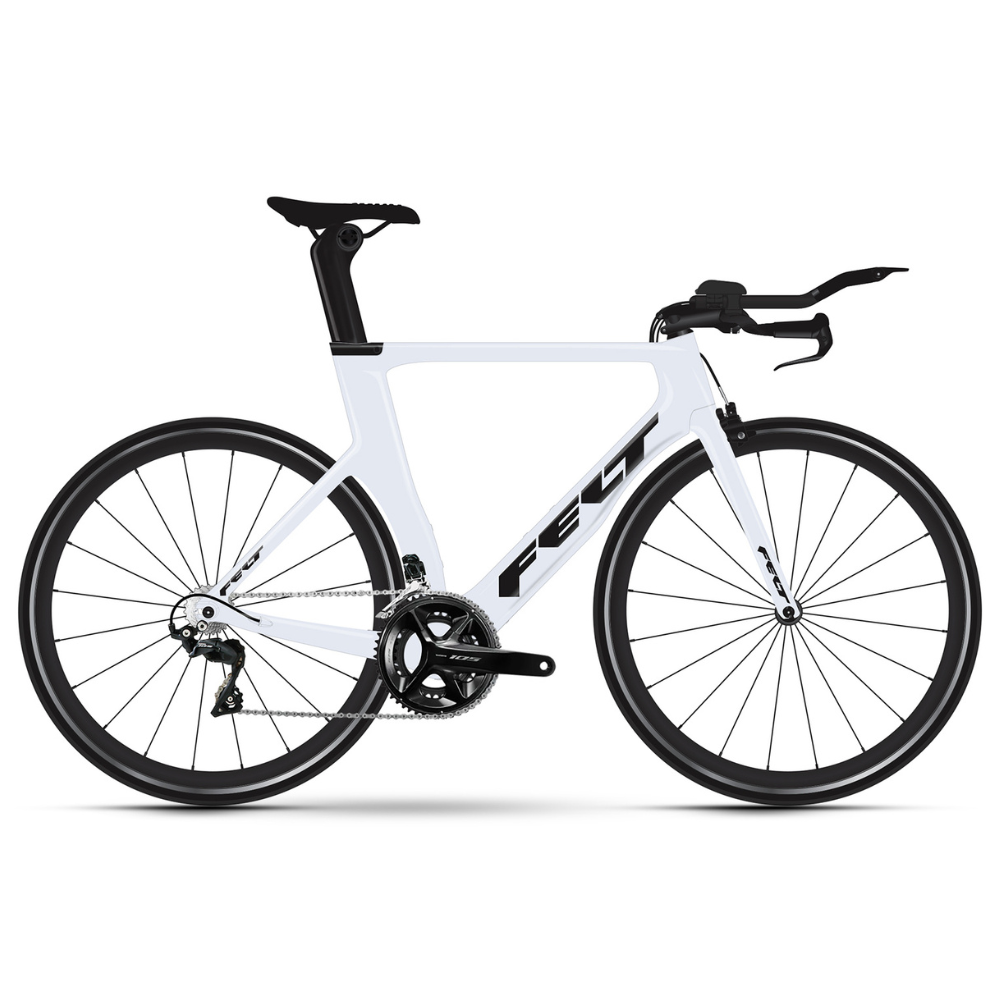

The B platform is the origin of Felt's triathlon prowess. The carbon frame is designed with aero efficiency and rideabilitiy in mind.
Gimmicks are left in the wind
Triathlon is a combination of physical preparation and mental toughness. Keep things simple and go with the B series if you want an easy-to-use, simple-to-maintain rig that is set-up for training and racing without any extra fuss. Paired with a groupset and finishing kit that offers great value, you've got PRs in your future.
Specification
Frame Set
|
Frame |
Felt B 2.0 Aero TRI/TT, UHC Performance carbon |
|
Fork |
Felt B 2.0, UHC Performance carbon with aluminum steerer tube |
Brakes & Drivetrain
|
Front brake |
Shimano 105 BR-R7100, V-brake |
|
Rear brake |
Shimano 105 BR-R7010-R Under BottomV-brake |
|
Brake lever |
Tektro RX4.1 |
|
Rear derailleur |
Shimano 105, RD-R7100, short cage, 24-S |
|
front derailleur |
Shimano 105, FD-R7100, Brazed-On |
|
Cassette |
Shimano 105 CS-R7100, 11-34 T |
|
Chain |
Shimano CN-M7100 |
|
Crankset |
Shimano 105, FC-R7100, 50/34 T |
|
Shift lever |
Microshift BS-A11 |
Wheels
|
Wheelset |
Devox WheelRRS.A1, thru axle |
|
Front wheel |
Rim: Alex Aluminum 21.4/17/22mm / Hub: Shimano HBRS400 |
|
Rear wheel |
Rim: Alex Aluminum 21.4/17/22mm / Hub: Shimano FHRS400 |
|
Tire |
Continental Ultra Sport III SL, 700x25 |
Cockpit
|
Stem |
Devox StemR.A2, 17 ° |
|
Headset |
IS (IS-21) |
|
Handlebar |
Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum 31.8 mm, 420 mm |
|
bar tape |
Felt EVA arm pads with anti-microbial cover and Felt Gel tape |
|
Saddle |
Prologo Dimension Tri STN |
|
Seat post |
Felt Aero TRI/TT +25, 350 mm |
Additional Information
|
Weight |
9.13kg |
|
Permissible total weight |
129kg |
Size Guide
|
|
47 |
48 |
51 |
54 |
56 |
58 |
|
Rider Height
|
152.4 - 167.6 cm 5’0” - 5’5” |
152.4 - 167.6 cm 5’0” - 5’5”
|
167.6 - 172.7 cm 5’5” - 5’8”
|
172.7 - 180.3 cm 5’8” - 5’11”
|
180.3 - 187.9 cm 5’11” - 6’2”
|
187.9 - 195.5 cm 6’2” - 6’5”
|
|
Rider Inseam
|
70.8 - 74.4 cm 27.9” - 29.3” |
70.8 - 74.4 cm 27.9” - 29.3”
|
74.4 - 77.9 cm 29.3” - 30.7”
|
77.9 - 83.0 cm 30.7” - 32.7”
|
83.0 - 85.8 cm 32.7” - 33.8” |
85.8 - 88.9 cm 32.7” - 35.0”
|
Geometry
|
|
47 |
51 |
54 |
56 |
58 |
61 |
|
(A)Top Tube Length |
490 mm |
518 mm |
539 mm |
559 mm |
579 mm |
594 mm |
|
(B) Seat Tube Length |
470 mm |
510 mm |
540 mm |
560 mm |
580 mm |
610 mm |
|
(C) Seat Tube Angle |
76.5 ° |
76 ° |
76 ° |
76 ° |
76 ° |
76 ° |
|
(D) Head Tube Length |
115 mm |
115 mm |
127 mm |
147 mm |
167 mm |
198 mm |
|
(E) Steering Angle |
71 ° |
72.5 ° |
73 ° |
73 ° |
73 ° |
73 ° |
|
(F) Wheel Base |
935 mm |
961 mm |
978 mm |
999 mm |
1020 mm |
1037 mm |
|
(G) Standover Height |
703 mm |
743 mm |
764 mm |
779 mm |
780 mm |
780 mm |
|
(H) BB-Drop |
45 mm |
70 mm |
70 mm |
70 mm |
70 mm |
70 mm |
|
(I) Fork Offset |
40 mm |
40 mm |
40 mm |
40 mm |
40 mm |
40 mm |
|
(J) Stack |
468 mm |
521 mm |
535 mm |
554 mm |
573 mm |
602 mm |
|
(K) Reach |
375 mm |
388 mm |
405 mm |
420 mm |
436 mm |
444 mm |
