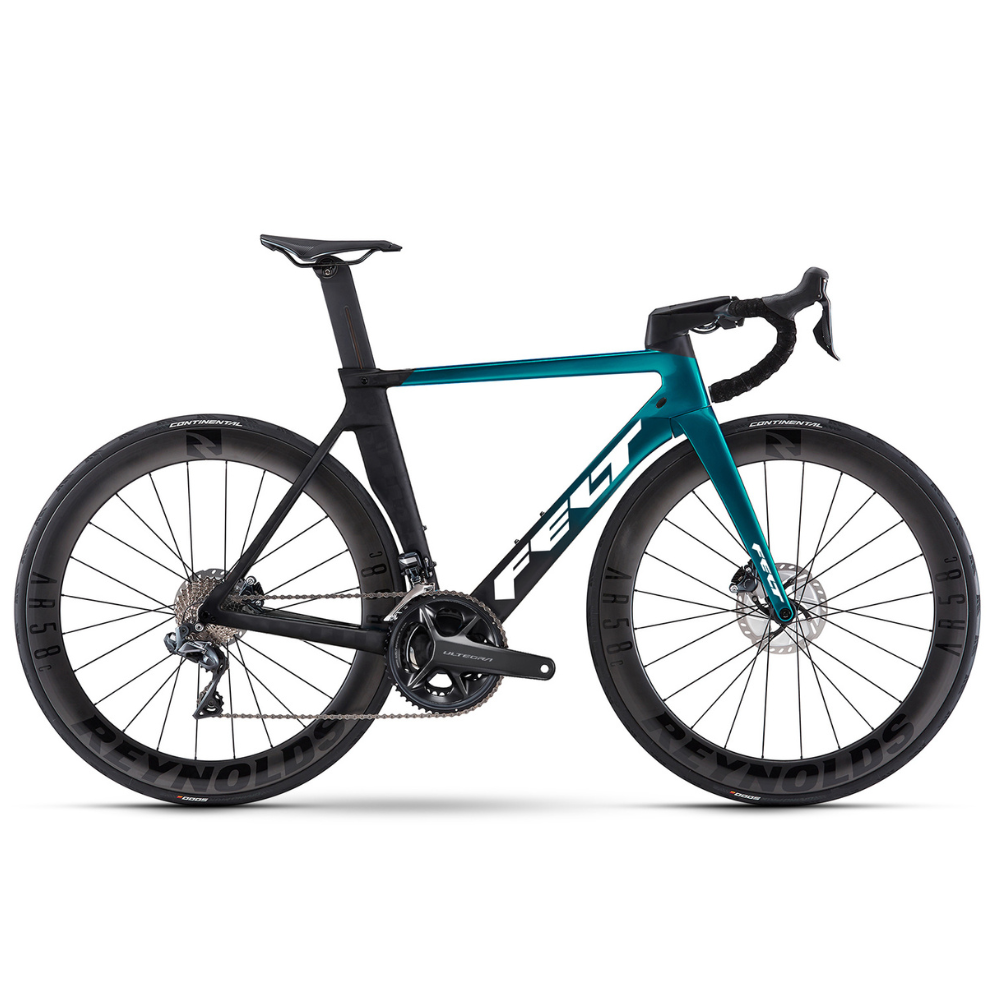

The Advanced level carbon AR delivers aero efficiency and racing prowess combined with the exceptional performance of Shimano Ultegra Di2.
AERO-OPTIMIZED FOR SPEED
Designed to cheat the wind and for hardcore riding, the AR is a dynamic bike willing to go the distance with whatever you can throw its way, whether that's driving the breakaway or positioning yourself for the final sprint. Shimano's impressive Ultegra Di2 groupset, now with 12-speeds, merges with the performance benefits that our aero frame offers. Ready. Set. Go.
PRECISION SHIFTING FROM SHIMANO
Shimano's 12-speed Ultegra Di2 brings crisp shifting and dynamic functionality for performance-oriented riders. Improved ergonomics and a wireless cock-pit improve on Shimano's already impressive groupset in this latest generation.
AERO WHEELSET IS RACE-READY
Reynolds AR58 DB Custom wheels with Continental Grand Prix SL tires offer a wind-cheating aero profile and great ride feel to keep performance front and center. Confidently rip some technical corners and launch yourself into the break in style.
DIAL IN YOUR COCKPIT
The PRO Vibe Aero bar completes the Shimano assortment, ensuring a clean, ergonomic, and race-inspired front end for the AR. Easy to adjust with a separate handlebar and stem, the AR front-end is purpose-built for your riding needs.
Specification
Frame Set
|
Frame |
Felt AR 3.0, UHC Advanced + TeXtreme carbon |
|
Fork |
Felt AR 3.0, UHC Ultimate + TeXtreme carbon |
Brakes & Drivetrain
|
Front brake |
Shimano BR-R8170, 2-piston, Hydraulic disc brake |
|
Rear brake |
Shimano BR-R8170, 2-piston, Hydraulic disc brake |
|
Front brake rotor |
Shimano RT-MT800, 160 mm, Center lock |
|
Rear brake rotor |
Shimano RT-MT800, 140 mm, Center lock |
|
Rear derailleur |
Shimano Ultegra Di2, RD-R8150, Shadow, 24-S |
|
front derailleur |
Shimano Ultegra Di2, FD-R8150 |
|
Cassette |
Shimano CS-R8100, 11-30 T |
|
Chain |
Shimano CN-M8100 |
|
Crankset |
Shimano Ultegra, FC-R8100, 52/36 T |
|
Shift lever |
Shimano Ultegra Di2, ST-R8170 |
Wheels
|
Wheelset |
Reynolds AR58 DB Custom, Tubeless ready, Center lock, 12x100/12x142 mm |
|
Tire |
Continental Grand Prix SL, 700x25 |
Cockpit
|
Stem |
Felt Sprint, -6 ° |
|
Headset |
IS (NO.44) |
|
Handlebar |
48, 51 cm: Devox DBar.C0 Aero 31.8 mm, 400 mm, |
|
bar tape |
Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs |
|
Saddle |
Prologo Dimension 143 T4.0 |
|
Seat post |
Felt AeroRoad IL 2.0, 350 mm |
Additional Information
|
Permissible total weight |
129kg |
