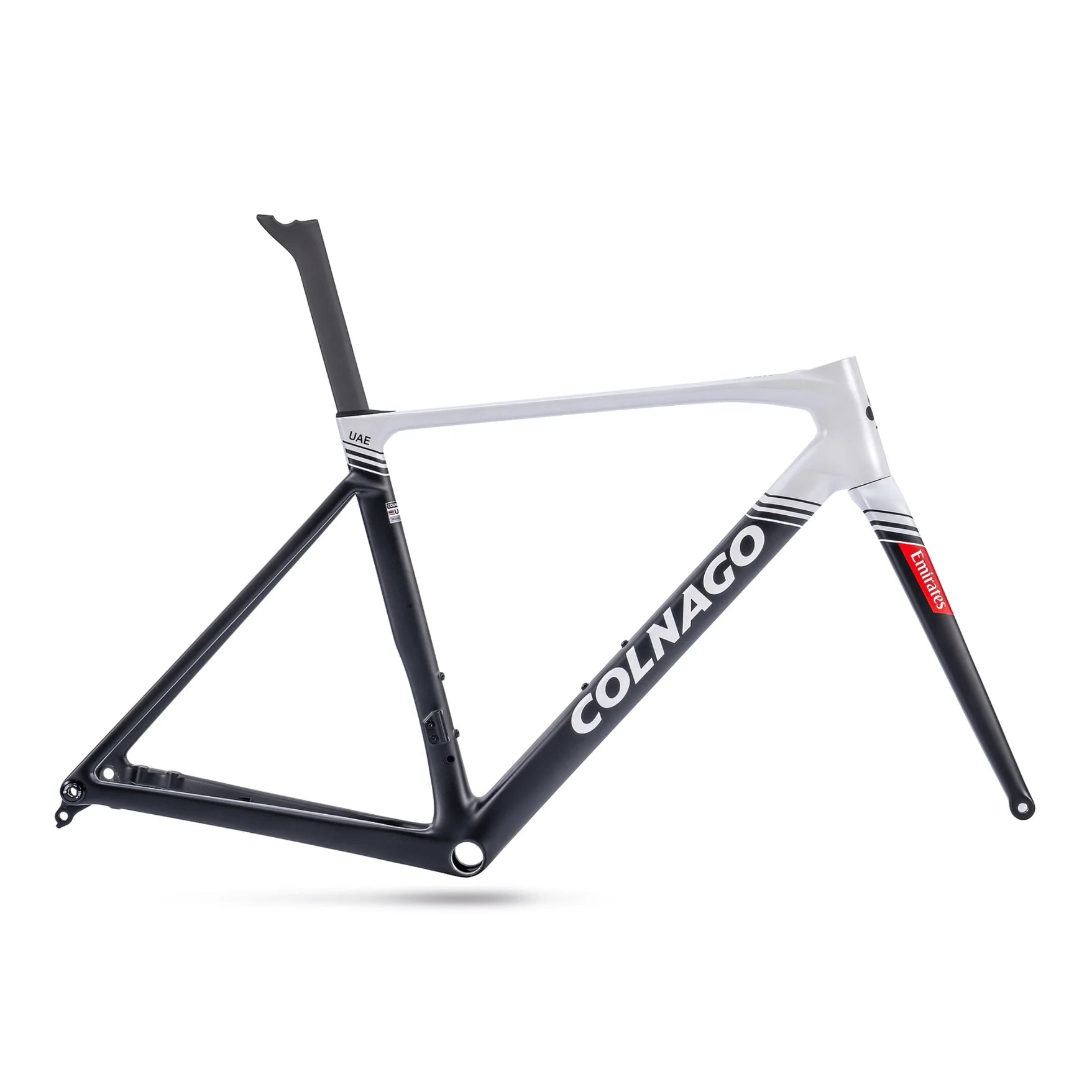

Colnago V5RS Frameset - SDM5

The Colnago V5RS Frameset is the latest evolution of the V Series, created as the ultimate all-round racing platform. Designed for top-level competition, it brings together low weight, aerodynamic efficiency, sharp responsiveness and confident handling in one refined package.

The Lightest Colnago Ever: With a ready-to-paint frame weight of just 685 grams, the V5RS is the lightest Colnago ever made. The frame kit is 12.5% lighter than its predecessor, giving riders a clear advantage on climbs and accelerations while maintaining the stiffness needed for aggressive racing.

Advanced Carbon Construction: New lamination techniques allow Colnago to control the placement of carbon fibres with greater precision across every part of the frame. This results in a structure that feels light, strong and durable, delivering the kind of efficiency and reliability serious riders expect from a race-focused frameset.

Refined for Real Racing Needs: The V5RS has been developed to improve every major aspect of performance, including aerodynamics, rigidity, handling and overall ride response. Rather than focusing on a single strength, it is engineered as a complete racing machine that performs across climbs, descents, breakaways and fast finishes.

For riders seeking the most advanced all-round race platform from the brand, the Colnago V5RS Frameset delivers elite-level speed, control and a true winning character.

• Featherweight Race Platform: With a ready-to-paint frame weight of 685 g, it is the lightest Colnago ever made for elite racing.
• All-Round Racing Focus: Built to perform across climbs, descents, breakaways and fast finishes with speed, control and confidence.
• Advanced Carbon Precision: New lamination techniques improve fibre placement for a lighter, stronger and more reliable race-ready structure.
• Sharper Ride Response: Engineered to improve aerodynamics, rigidity and handling for a more complete and competitive racing feel.
• Climb-Ready Efficiency: The lighter frame kit helps riders gain an advantage on accelerations and uphill efforts without losing stiffness.
• Refined Competitive Handling: Developed as a balanced race machine that stays sharp, responsive and composed under demanding race conditions.

Technologies

• Thinner Profiles: Refined high-performance tube shaping improves aerodynamic efficiency, bringing the V5RS close to leading aero frames in wind tunnel testing.
• Narrow Frontal Area: A 250 cm² frontal area, 13% smaller than its predecessor, helps reduce drag and save valuable watts.
• Stiff And Responsive: The V5RS combines low weight and aerodynamics with the stiffness and reaction speed demanded by professional riders.
• More Precise Steering: A lighter new fork improves steering accuracy, while 32 mm tyre clearance supports more grip and better handling.

• Model: V5RS
• Frame Material: Colnago V5Rs Monocoque Carbon Frame
• Fork Material, Section Notes: Integrated Cables, Semi-Circular Section, Carbon Fork For Disc Brakes
• Headset: 1"1/8 And 1"1/4 - SLT Treated Bearing
• Seatpost: Carbo Standard Option Carbon Seatpost, 15mm Offset, Sold Separately Carbon Seatpost, 0 mm Offset
• Through Axle: Diameter: 12 mm, Length 100 mm (Front) - 142 mm (Rear)
• Handlebar Sizes: 80-370, 90-390, 100-390, 100-410, 110-390, 110-410, 110-430, 120-390, 120-410, 120-430
• Color: SDM5, SDM6, VRWB, VRBK, STNT, STBU, VRWC
• Sizes: 420, 455, 485, 510, 530, 550, 570
