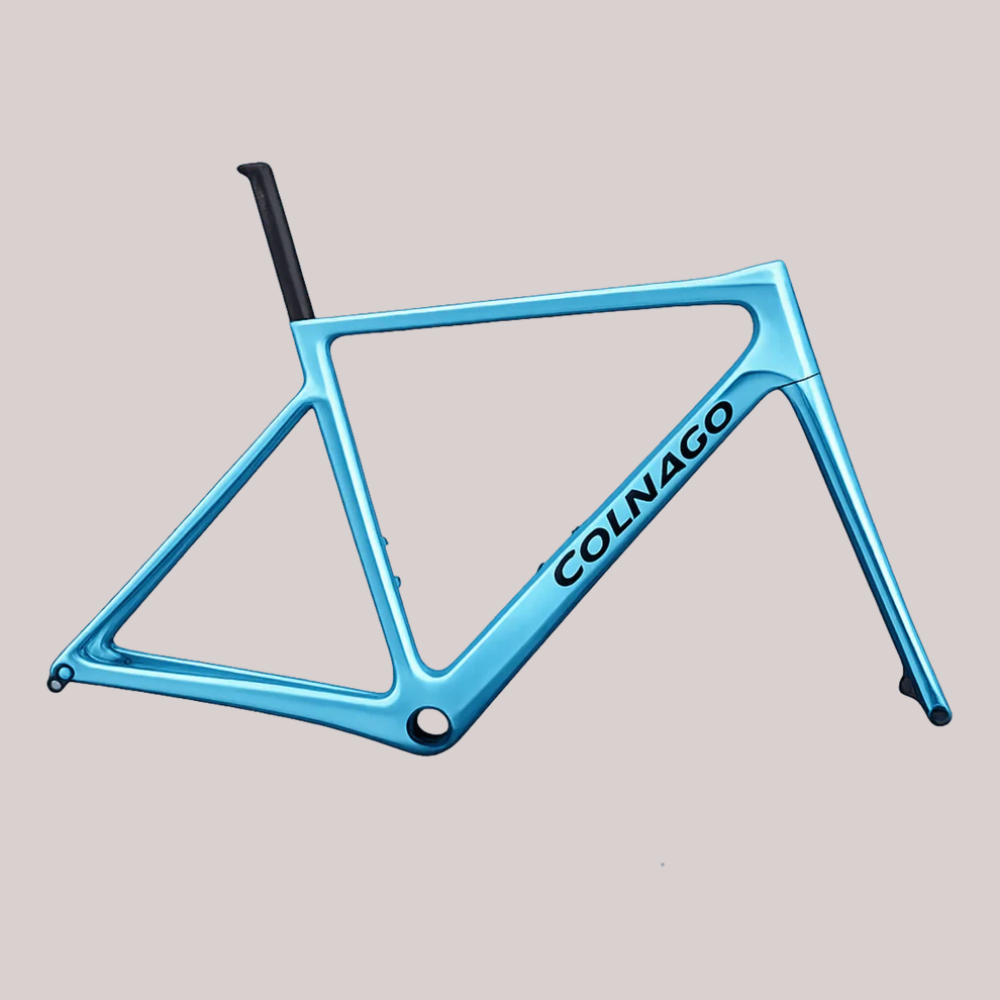

Colnago V4 Frameset - Blue

The Colnago V4 Frameset is built for riders who want a bike that feels lively, sharp and rewarding on every ride. Its monocoque carbon construction delivers a strong and reactive character, making it equally enjoyable for fast efforts, long rides and varied terrain.

Inspired by Race-Level Development: Developed using the same carbon layup research and aerodynamic studies behind the V4Rs, the V4 brings advanced engineering into a more versatile all-round platform. This gives riders a refined mix of efficiency, handling and speed without losing everyday rideability.

Built for Balance: The V4 is designed to offer an excellent balance between stiffness, solidity and comfort. High-quality carbon and well-thought-out fittings work together to create a frameset that feels stable under power, confident through corners and smooth across changing road conditions.

Clean Design with Technical Purpose: Along with its performance-focused construction, the frame carries a clean and refined design that reflects Colnago’s premium identity. Its shape combines lightness and aerodynamic efficiency in a way that looks elegant while still serving real on-road performance.

For riders who want an all-round premium road platform with speed and responsiveness the Colnago V4 Frameset stands out as a refined and exciting choice.

• Race-Bred Carbon Build: Monocoque carbon construction delivers a lively and sharp ride feel across fast efforts, long rides and varied terrain.
• V4Rs-Derived Development: Built from the carbon layup and aero studies of the V4Rs for speed, control and all-round versatility.
• Composed Ride Balance: Designed to blend stiffness, stability and comfort for strong power transfer and confident road handling.

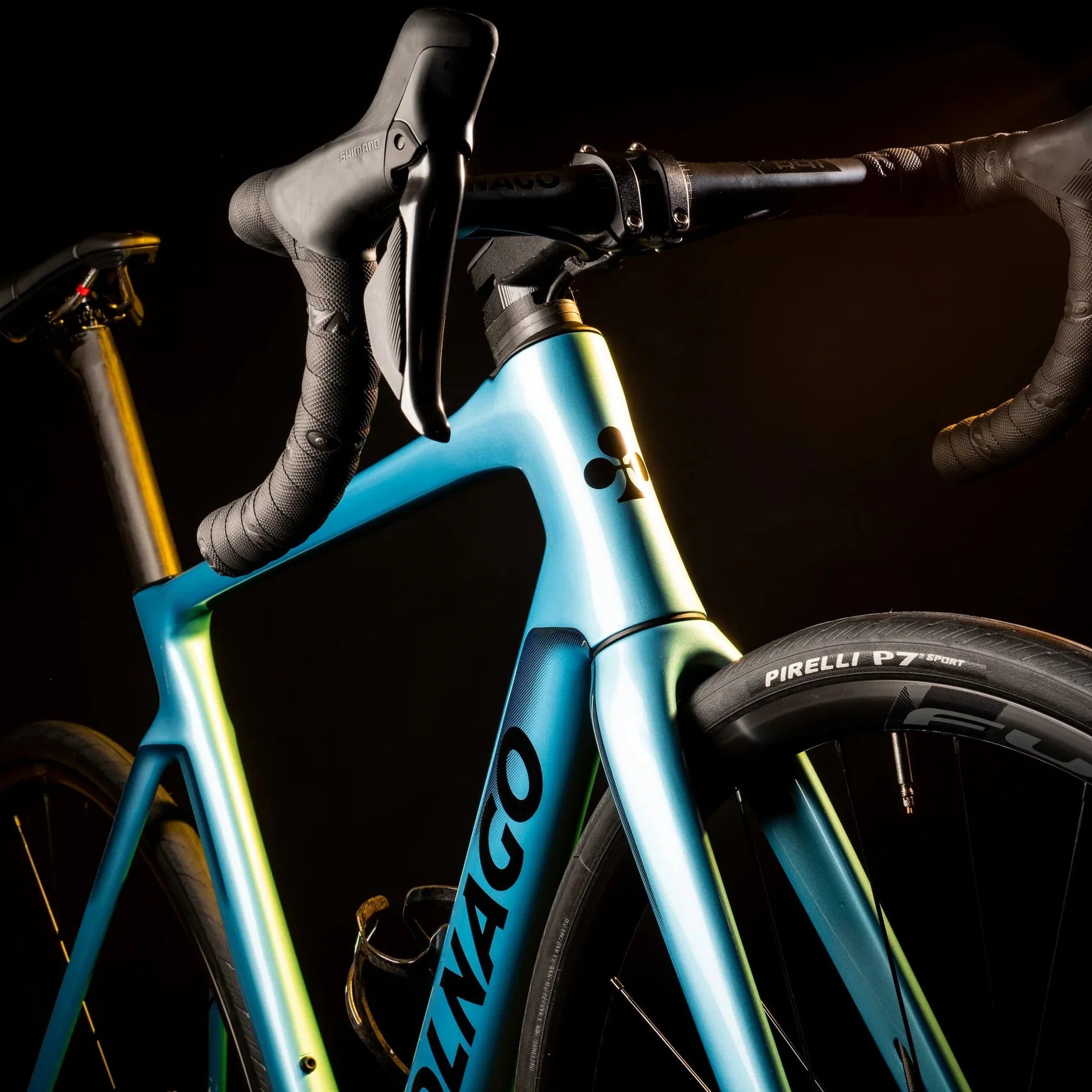

• Sharper Front-End Feel: A shorter head tube and longer fork improve responsiveness and ride quality on climbs and flatter roads.
• Disc-Ready Wide Clearance: Disc-specific fork and concave chainstays support tyres up to 30 mm for more capable road setups.
• Streamlined Cable Routing: Internal routing through the SR10 stem and fork steerer creates a cleaner look with better aero efficiency.

• Model: V4
• Frame Material: Monocoque Carbon
• Fork Material, Section Notes: Carbon Fork For Disc Brakes, Integrated Cables, 1"1/8 Section
• Headset: ACROS SS 1"1/4 35x47x7 Bearing
• Seatpost: Carbon Seatpost, 0.15 Offset, "D-Shape" Section
• Bottom Bracket standard: T47
• Through Axle: Diameter: 12 mm, Length 100 mm (Front) - 142 mm (Rear)
• Handlebar: Colnago CC.01 S - Carbon Integrated Cockpit (One-Piece), Sizes 420 - 485 Width: 420 mm, Sizes 510 - 570 Width: 440 mm
• Color: Blue, Grey, Red
• Sizes: 420, 455, 485, 510, 530, 550, 570
