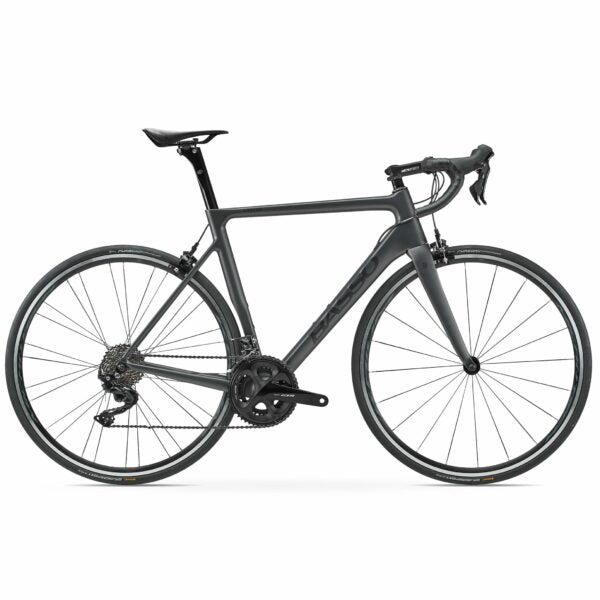

Basso Frame Venta Rim Ultegra - Anthracite

Regular price: Rs. 243,990.00
Sale price: Rs. 243,990.00
Regular price
Unit price: per

Tax included. Shipping calculated at checkout.

Color

Quantity

Quantity must be 1 or more

The Basso Frame Venta Rim in Sea Blue. Handmade with precision, this frame offers premium quality, efficient power transfer, and superior comfort. The 3B Clamp System enhances ride smoothness. Perfect for those seeking long-lasting performance and exceptional value. Ride faster, ride better with Basso Venta.

To those who claim that quality construction and long-lasting performance are concepts available to only a select few, we have just one word: Venta. Handmade by Basso with the same extreme attention to quality and detail used to make the most premium frames in the range, the Venta represents a fantastic value proposition. Made to race, made to last, the Venta is built to give lasting performance for years to come.

Your Power, your Speed

The oversized bottom bracket and down tube meet with a reinforced head tube junction to resist torsional stress and result in an extremely efficient power transfer. No power loss to flex means more efficient riding, more energy for the final sprint and more speed for equivalent watts.

Fast, smooth, no compromises

A more relaxed geometry gives additional comfort to the meticulously developed carbon layup created to confer both a reactive and comfortable structure. The straight fork and compact rear triangle make for an extra responsive handling performance, making the Venta agile enough for even the fastest most technical.

3B Clamp System Gen 2

A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.

The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.

Note:- Product images are for representation purposes only and may vary slightly from the actual product.

Specification

Bottom Bracket	BB386 Pressfit EMA-PB30-PKSB
Shift levers	Shimano Ultegra ST-R8000 SIS
Cassette	Shimano Ultegra CS-R8000 11-30T
Front Derailleur	Shimano Ultegra FD-R8000 SIS
Rear Derailleur	Shimano Ultegra RD-R8000 SIS
Grip/Tape	Basso Tape
Handlebar	Microtech Alloy
Stem	Microtech
Seatpost	Basso Seat Post
Front Brake, Rear Brake,	Shimano Ultegra BR-R8010
Front Wheel, Rear Wheel,	Krium Wheel
Tires	Vittoria Zaffiro 700 X 25C
Crank	FSA Gossamer PRO 50-34
CHAIN	Shimano Ultegra

Geometry

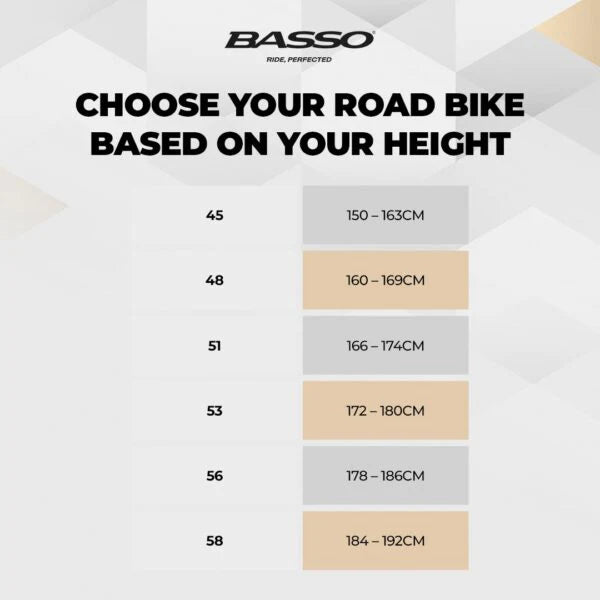

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	45	48	51	53	56	58	61
SEAT TUBE (A1)	450 mm	480 mm	510 mm	530 mm	560 mm	580 mm	610 mm
TOP TUBE (B)	505 mm	515 mm	525 mm	545 mm	560 mm	575 mm	590 mm
REACH (R)	374 mm	374 mm	377 mm	383 mm	385 mm	388 mm	389 mm
STACK (S)	527 mm	527 mm	552 mm	564 mm	591 mm	614 mm	638 mm
SEAT TUBE ANGLE (C)	76°	75°	75°	74°	73,5°	73°	72,5°
STEERING TUBE ANGLE (D)	71,8°	71,8°	72°	74°	73,5°	73,5°	74°
CHAIN-STAY LENGTH (E)	400 mm	400 mm	400 mm	400 mm	402 mm	406 mm	406 mm
BB TO FORK LENGTH (F)	576 mm	576 mm	585 mm	592 mm	590 mm	599 mm	602 mm
HEAD TUBE (H)	125 mm	125 mm	150 mm	162 mm	180 mm	204 mm	228 mm
HANDLEBAR WIDTH OUT/OUT (M)	420 mm	440 mm	440 mm	440 mm	440 mm	440 mm	460 mm
STEM LENGTH (N)	90 mm	100 mm	100 mm	110 mm	110 mm	120 mm	130 mm
CRANK LENGTH (O)	170 mm	170 mm	172,5 mm	172,5 mm	172,5 mm	172,5 mm	175 mm

Basso-Road-Bike-Venta-Disc-Size-Guide
