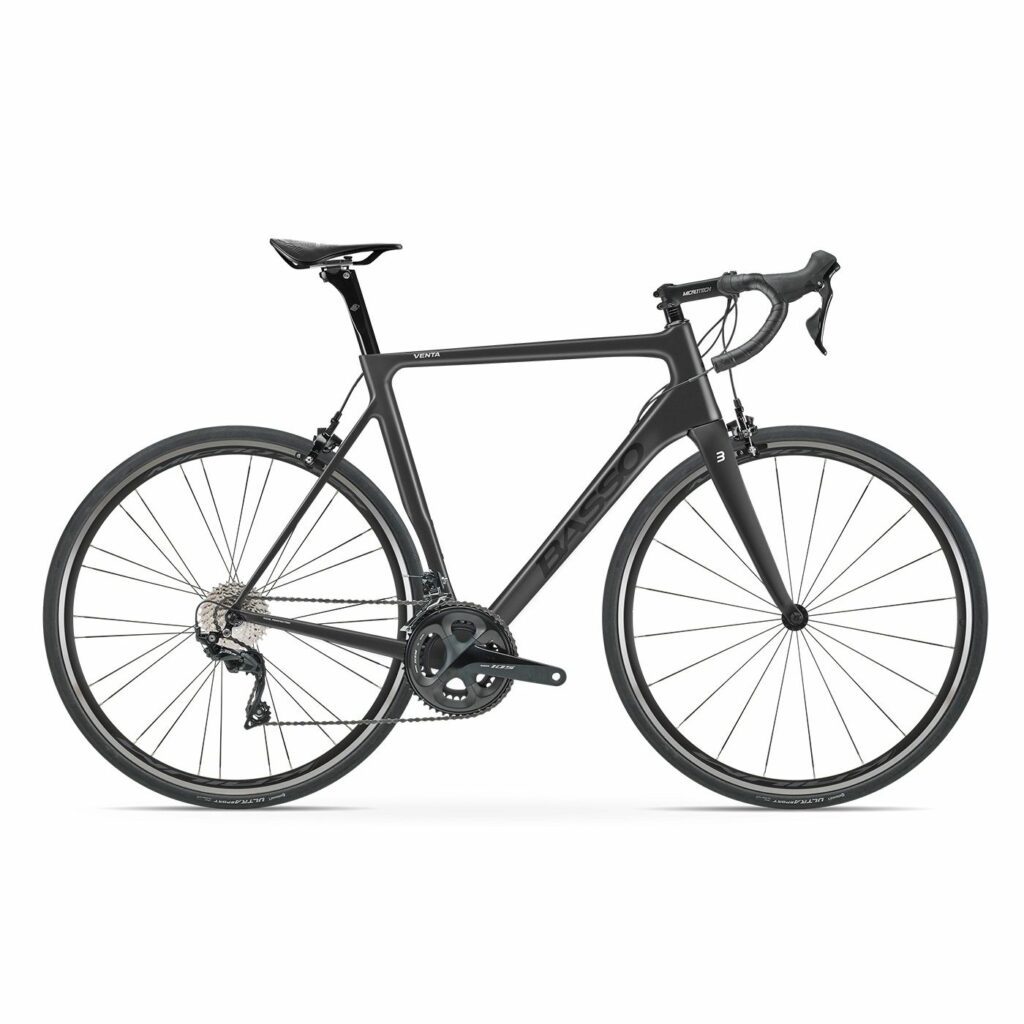

Basso Venta Rim 105 - Anthracite
Basso Venta Rim 105 - Anthracite
  • Load image into Gallery viewer, Basso Venta Rim 105 - Anthracite
  • Load image into Gallery viewer, Basso Venta Rim 105 - Anthracite

Basso Venta Rim 105 - Anthracite

Rs. 229,990.00
Rs. 229,990.00
Rs. 229,990.00
Coming Soon
Tax included. Shipping calculated at checkout.

DESCRIPTION

Premium Quality for all

To those who claim that quality construction and long-lasting performance are concepts available to only a select few, we have just one word: Venta. Handmade by Basso with the same extreme attention to quality and detail used to make the most premium frames in the range, the Venta represents a fantastic value proposition. Made to race, made to last, the Venta is built to give lasting performance for years to come.

Your Power, your Speed

The oversized bottom bracket and down tube meet with a reinforced head tube junction to resist torsional stress and result in an extremely efficient power transfer. No power loss to flex means more efficient riding, more energy for the final sprint and more speed for equivalent watts.

Fast, smooth, no compromises

A more relaxed geometry gives additional comfort to the meticulously developed carbon layup created to confer both a reactive and comfortable structure. The straight fork and compact rear triangle make for an extra responsive handling performance, making the Venta agile enough for even the fastest most technical.

Details Matter

Its beautiful shape and construction meet with advanced features, generally reserved for higher tier offerings such as internal cable routing.

3B Clamp System Gen 2

A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.

The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.

Note:- Product images are for representation purposes only and may vary slightly from the actual product.

SPECIFICATION

Bottom Bracket

 BB386 Pressfit EMA-PB30-PKSB

Shift levers

 Shimano 105 ST-R7000 SIS

Cassette

 Shimano 105 CS-R7000 11-30T

Front Derailleur

 Shimano 105 FD-R7000 SIS

Rear Derailleur

 Shimano 105 RD-R7000 SIS

Grip/Tape

 Basso Tape

Handlebar

 Microtech Alloy

Stem

 Microtech

Seatpost

 Basso Seat Post

Front Brake, Rear Brake,

 Shimano 105 BR-R7000

Front Wheel, Rear Wheel,

 Krium Wheel

Tires

 Vittoria Zaffiro 700 X 25C

Crank

 FSA Gossamer PRO 50-34

CHAIN

 Shimano Ultegra




Geometry

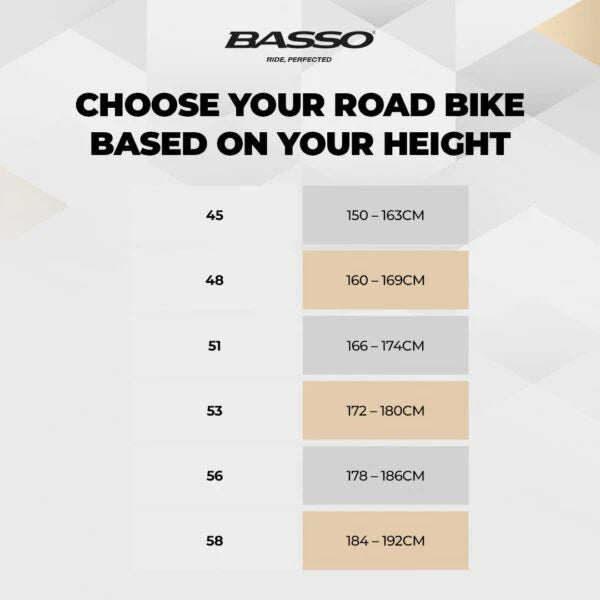

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

45 48 51 53 56 58 61
SEAT TUBE (A1) 450 mm 480 mm 510 mm 530 mm 560 mm 580 mm 610 mm
TOP TUBE (B) 505 mm 515 mm 525 mm 545 mm 560 mm 575 mm 590 mm
REACH (R) 374 mm 374 mm 377 mm 383 mm 385 mm 388 mm 389 mm
STACK (S) 527 mm 527 mm 552 mm 564 mm 591 mm 614 mm 638 mm
SEAT TUBE ANGLE (C) 76° 75° 75° 74° 73,5° 73° 72,5°
STEERING TUBE ANGLE (D) 71,8° 71,8° 72° 74° 73,5° 73,5° 74°
CHAIN-STAY LENGTH (E) 400 mm 400 mm 400 mm 400 mm 402 mm 406 mm 406 mm
BB TO FORK LENGTH (F) 576 mm 576 mm 585 mm 592 mm 590 mm 599 mm 602 mm
HEAD TUBE (H) 125 mm 125 mm 150 mm 162 mm 180 mm 204 mm 228 mm
HANDLEBAR WIDTH OUT/OUT (M) 420 mm 440 mm 440 mm 440 mm 440 mm 440 mm 460 mm
STEM LENGTH (N) 90 mm 100 mm 100 mm 110 mm 110 mm 120 mm 130 mm
CRANK LENGTH (O) 170 mm 170 mm 172,5 mm 172,5 mm 172,5 mm 172,5 mm 175 mm



Basso-Road-Bike-Venta-Disc-Size-Guide
