Description

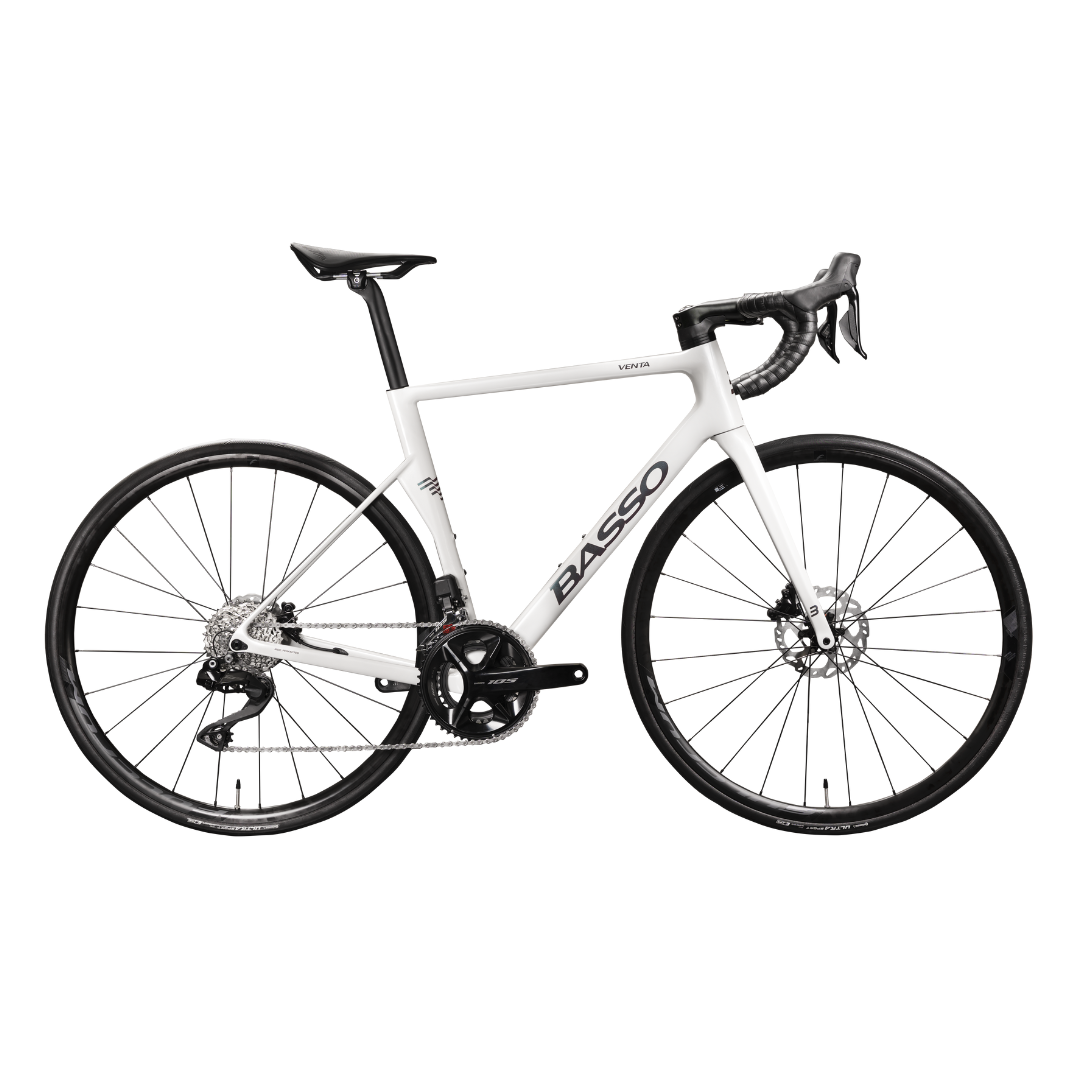

The Basso Venta R 105 12 Speed Fulcrum Racing 800 is built for riders who demand a balance of speed, comfort and precision. Designed as a versatile all-rounder, it blends premium craftsmanship with innovative features, making every ride an opportunity to push limits while enjoying the finer details of cycling.
Features
- Aero-shaped tubes, rear wheel cut-out and lowered seat stays reduce drag without compromising handling
- Delivers smooth, precise shifting with a wide gear range for varied terrain
- Combines stiffness and responsiveness for effortless acceleration and speed retention.
- Torayca T700 carbon fiber frame and fork keep weight low while enhancing maneuverability.
- Supports up to 35mm tires, making it ideal for racing, training and endurance riding.
Specifications
- Intended Use- Road
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Carbon
- Fork Material- Carbon
Components
- Frame- Venta R Torayca T700 Carbon Monocoque Construction
- Fork- Venta R Full Carbon UD Torayca T700
- Bottom Bracket- Shimano 105
- Chain- Shimano 105 R7100
- Crank- Shimano 105 Hollowtech II 2x12
- Shift Levers- Shimano 105 Dual Control 12 Speed
- Cassette- Shimano 105 12S
- Front Derailleur- Shimano 105 2x12 Speed
- Rear Derailleur- Shimano 105 12 Speed
- Grips/Bartape- Selle Italia Smart Tape
- Saddle- Selle Italia Model X
- Seatpost- 3B Gen 2
- Front Wheel- Fulcrum Racing 800
- Rear Wheel- Fulcrum Racing 800
- Tires- Continental Ultra Sport 25C
Note:- Product images are for representation purposes only and may vary slightly from the actual product.
Geometry
Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.
| 45 | 48 | 51 | 53 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| SEAT TUBE (A1) | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| TOP TUBE (B) | 505 mm | 515 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| REACH (R) | 374 mm | 374 mm | 377 mm | 383 mm | 385 mm | 388 mm | 389 mm |
| STACK (S) | 527 mm | 527 mm | 552 mm | 564 mm | 591 mm | 614 mm | 638 mm |
| SEAT TUBE ANGLE (C) | 76° | 75° | 75° | 74° | 73,5° | 73° | 72,5° |
| STEERING TUBE ANGLE (D) | 71,8° | 71,8° | 72° | 74° | 73,5° | 73,5° | 74° |
| CHAIN-STAY LENGTH (E) | 400 mm | 400 mm | 400 mm | 400 mm | 402 mm | 406 mm | 406 mm |
| BB TO FORK LENGTH (F) | 576 mm | 576 mm | 585 mm | 592 mm | 590 mm | 599 mm | 602 mm |
| HEAD TUBE (H) | 125 mm | 125 mm | 150 mm | 162 mm | 180 mm | 204 mm | 228 mm |
| HANDLEBAR WIDTH OUT/OUT (M) | 420 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 460 mm |
| STEM LENGTH (N) | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 130 mm |
| CRANK LENGTH (O) | 170 mm | 170 mm | 172,5 mm | 172,5 mm | 172,5 mm | 172,5 mm | 175 mm |
