Basso

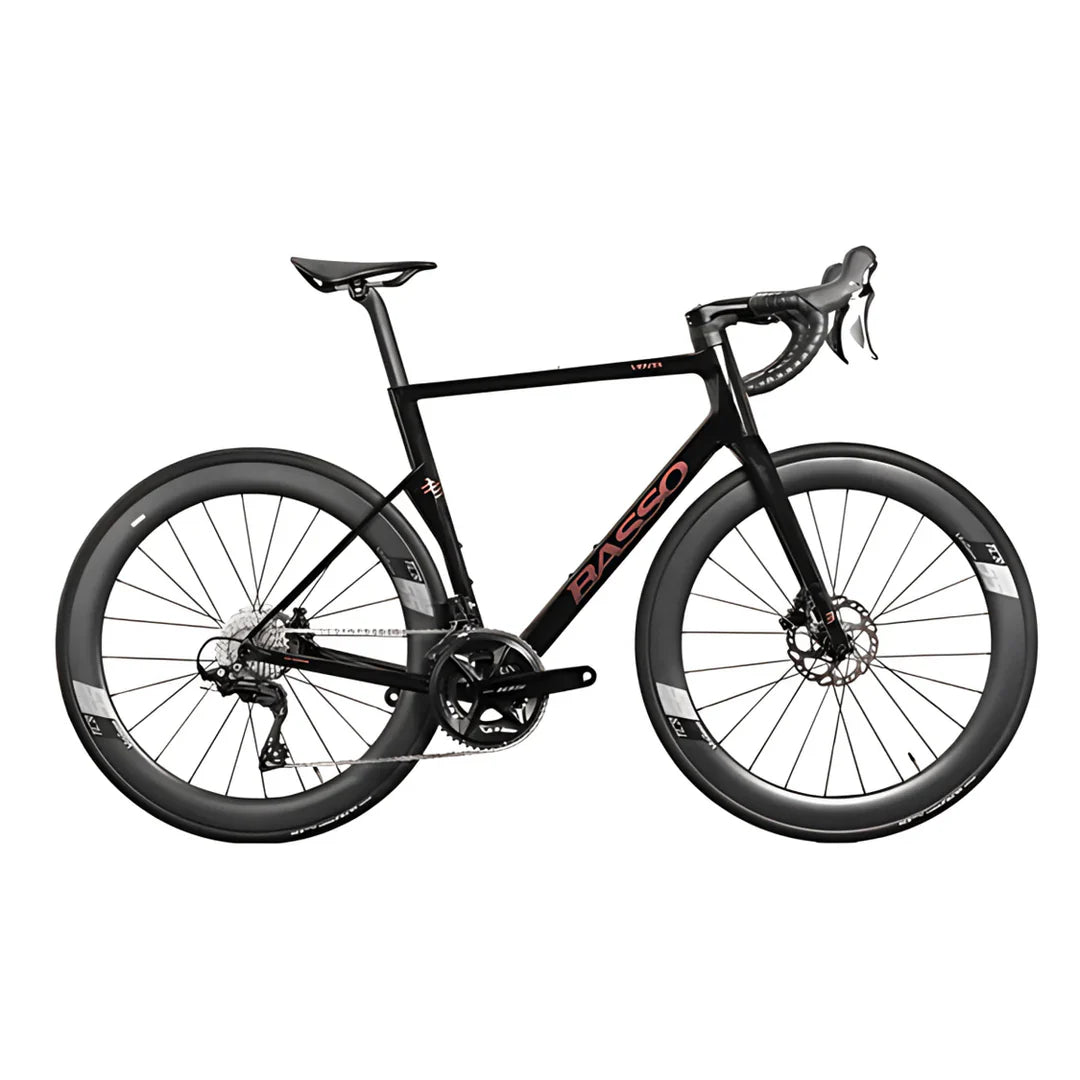

Basso Venta R 105 Di2 Vision TC 60 - Magma Black

Basso Venta R 105 Di2 Vision TC 60 - Magma Black

BS-KITVRB48-105DTC60

Rs. 319,990.00
Rs. 379,990.00 Rs. 319,990.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Wheels
View full details

Description

Experience smooth precision with the Basso Venta R 105 Di2 paired with Vision TC 60 wheels in Magma Black. Designed for reliable electronic shifting, it ensures effortless gear changes that enhance your ride. The lightweight Vision TC 60 wheels provide responsive handling and acceleration, making each ride comfortable and efficient. Ideal for cyclists seeking performance combined with dependable technology, this bike supports your journey every mile.

The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.

Note:- Product images are for representation purposes only and may vary slightly from the actual product.

Geometry

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

45 48 51 53 56 58 61
SEAT TUBE (A1) 450 mm 480 mm 510 mm 530 mm 560 mm 580 mm 610 mm
TOP TUBE (B) 505 mm 515 mm 525 mm 545 mm 560 mm 575 mm 590 mm
REACH (R) 374 mm 374 mm 377 mm 383 mm 385 mm 388 mm 389 mm
STACK (S) 527 mm 527 mm 552 mm 564 mm 591 mm 614 mm 638 mm
SEAT TUBE ANGLE (C) 76° 75° 75° 74° 73,5° 73° 72,5°
STEERING TUBE ANGLE (D) 71,8° 71,8° 72° 74° 73,5° 73,5° 74°
CHAIN-STAY LENGTH (E) 400 mm 400 mm 400 mm 400 mm 402 mm 406 mm 406 mm
BB TO FORK LENGTH (F) 576 mm 576 mm 585 mm 592 mm 590 mm 599 mm 602 mm
HEAD TUBE (H) 125 mm 125 mm 150 mm 162 mm 180 mm 204 mm 228 mm
HANDLEBAR WIDTH OUT/OUT (M) 420 mm 440 mm 440 mm 440 mm 440 mm 440 mm 460 mm
STEM LENGTH (N) 90 mm 100 mm 100 mm 110 mm 110 mm 120 mm 130 mm
CRANK LENGTH (O) 170 mm 170 mm 172,5 mm 172,5 mm 172,5 mm 172,5 mm 175 mm



  • Aero-shaped tubing, rear wheel cut-out and lowered seat stays reduce drag while maintaining agile handling
  • Delivers smooth, precise shifting with a wide gear range for varied terrain
  • Combines stiffness and responsiveness for effortless acceleration and speed retention.
  • Torayca T700 carbon fiber frame and fork keep weight low while enhancing maneuverability.
  • Supports up to 35mm tires, making it ideal for racing, training and endurance riding.
Specifications
  • Intended Use- Road
  • Wheel Size- 700c
  • Braking System- Hydraulic Disc
  • Frame Material- Carbon
  • Fork Material- Carbon
Components
  • Frame- Venta R Torayca T700 Carbon Monocoque Construction
  • Fork- Venta R Full Carbon UD Torayca T700
  • Bottom Bracket- Shimano 105
  • Chain- Shimano 105 7100
  • Crank- Shimano 105 7100
  • Shift Levers- Shimano 105 Di2 7170
  • Cassette- Shimano 105 12S
  • Front Derailleur- Shimano 105 Di2 7150
  • Rear Derailleur- Shimano 105 Di2 7150
  • Grips/Bartape- Selle Italia Smart Tape
  • Saddle- Selle Italia Model X
  • Seatpost- 3B Gen 2
  • Front Wheel- Vision TC 60
  • Rear Wheel- Vision TC 60
  • Tires- Continental Ultra Sport 25C
