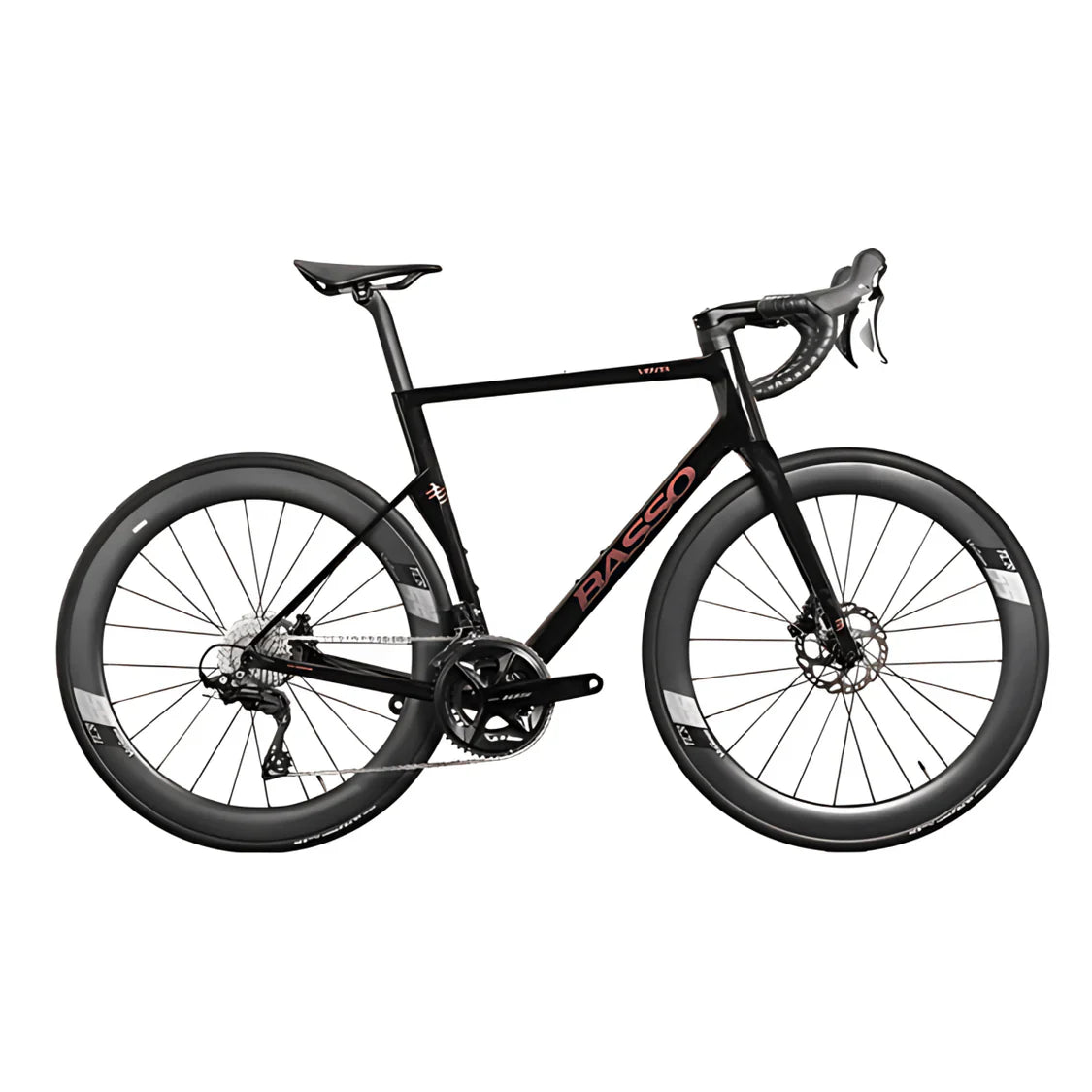

Basso Venta R 105 Di2 Vision Metron 55 - Magma Black

Basso Venta R 105 Di2 Vision Metron 55 - Magma Black

BS-KITVRB48-105DM55

Rs. 379,990.00
Rs. 429,990.00 Rs. 379,990.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Wheels
View full details

Description

The Basso Venta R 105 Di2 Vision Metron 55 is crafted for riders who demand race-level performance with cutting-edge technology. This all-rounder combines aerodynamic efficiency, responsive handling and refined style—making it equally suited for competitive events and high-speed training sessions.

The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.

Note:- Product images are for representation purposes only and may vary slightly from the actual product.

Geometry

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

45 48 51 53 56 58 61
SEAT TUBE (A1) 450 mm 480 mm 510 mm 530 mm 560 mm 580 mm 610 mm
TOP TUBE (B) 505 mm 515 mm 525 mm 545 mm 560 mm 575 mm 590 mm
REACH (R) 374 mm 374 mm 377 mm 383 mm 385 mm 388 mm 389 mm
STACK (S) 527 mm 527 mm 552 mm 564 mm 591 mm 614 mm 638 mm
SEAT TUBE ANGLE (C) 76° 75° 75° 74° 73,5° 73° 72,5°
STEERING TUBE ANGLE (D) 71,8° 71,8° 72° 74° 73,5° 73,5° 74°
CHAIN-STAY LENGTH (E) 400 mm 400 mm 400 mm 400 mm 402 mm 406 mm 406 mm
BB TO FORK LENGTH (F) 576 mm 576 mm 585 mm 592 mm 590 mm 599 mm 602 mm
HEAD TUBE (H) 125 mm 125 mm 150 mm 162 mm 180 mm 204 mm 228 mm
HANDLEBAR WIDTH OUT/OUT (M) 420 mm 440 mm 440 mm 440 mm 440 mm 440 mm 460 mm
STEM LENGTH (N) 90 mm 100 mm 100 mm 110 mm 110 mm 120 mm 130 mm
CRANK LENGTH (O) 170 mm 170 mm 172,5 mm 172,5 mm 172,5 mm 172,5 mm 175 mm




  • Aero-shaped tubes, rear wheel cut-out and lowered seat stays reduce drag while maintaining stability.
  • Electronic shifting delivers fast, accurate gear changes in all riding conditions.
  • 55mm deep-section rims offer superior speed retention and stability in crosswinds.
  • High-quality carbon fiber frame and fork ensure strength, durability and agility.
  • Supports up to 35mm tires for both racing and endurance comfort
Specifications
  • Intended Use- Road
  • Wheel Size- 700c
  • Braking System- Hydraulic Disc
  • Frame Material- Carbon
  • Fork Material- Carbon
Components
  • Frame- Venta R Torayca T700 Carbon Monocoque Construction
  • Fork- Venta R Full Carbon UD Torayca T700
  • Bottom Bracket- Shimano 105
  • Chain- Shimano 105 7100
  • Crank- Shimano 105 7100
  • Shift Levers- Shimano 105 Di2 7170 12 speed
  • Cassette- Shimano 105 12S
  • Front Derailleur- Shimano 105 Di2 7150
  • Rear Derailleur- Shimano 105 Di2 7150
  • Grips/Bartape- Selle Italia Smart Tape
  • Saddle- Selle Italia Model X
  • Seatpost- 3B Gen 2
  • Front Wheel- Vision Metron 55
  • Rear Wheel- Vision Metron 55
  • Tires- Continental Ultra Sport 25C
