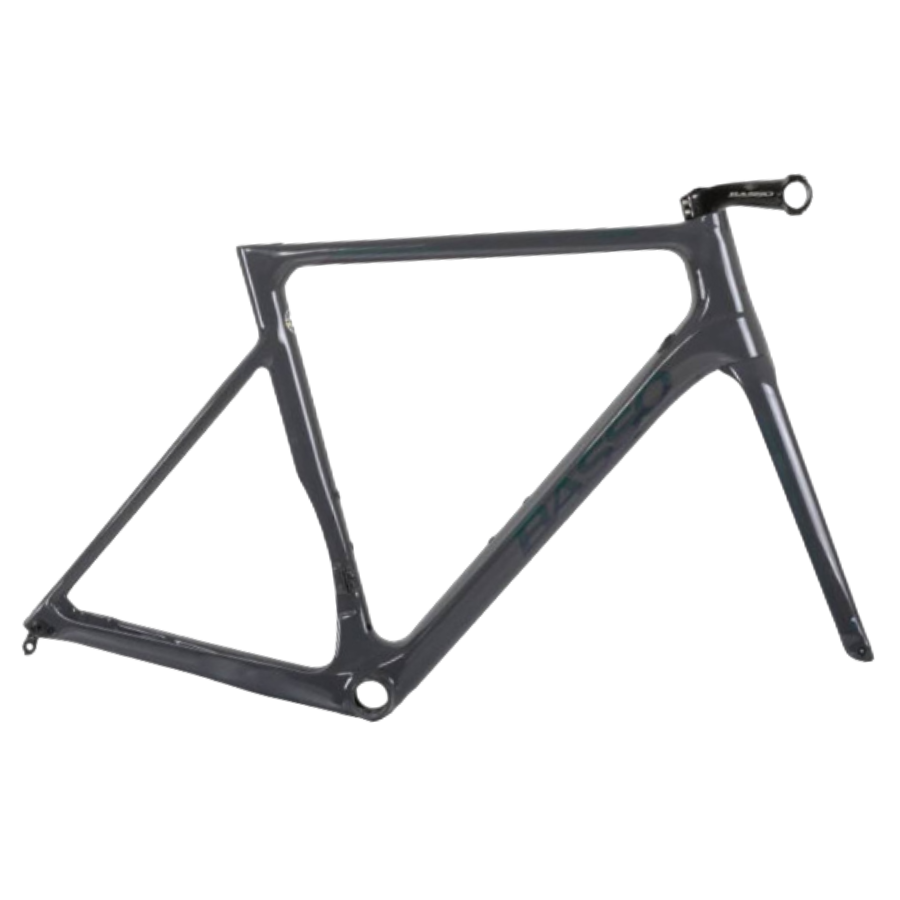

Basso Venta Disc Frame (Anthracite)

After two decades of fantastic performance, ground breaking design and unrivaled craftsmanship, the venta model celebrates its 20th year. Basso is proud to celebrate this specific model’s glorious past and present by introducing a completely new design that is as technically sound as it is beautiful. The new model, is the first model that follows a new design principle for basso that offers a stronger family feeling and more coherence in terms of design between all models, regardless of their position within the range.

Specification

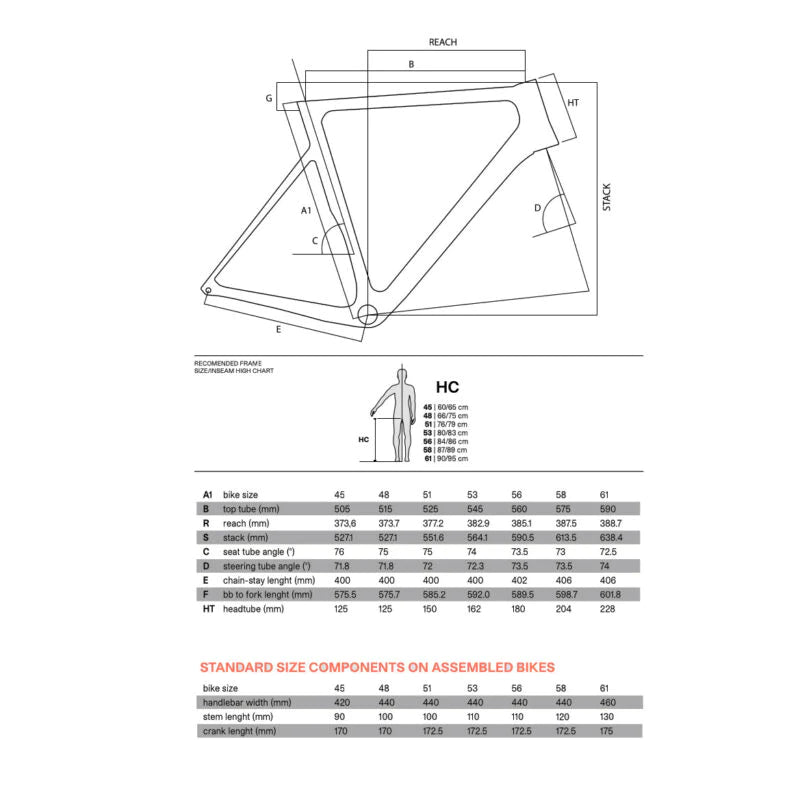

GEOMETRY & SIZE GUIDE

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	45	48	51	53	56	58	61
Seat Tube (A1)	450 mm	480 mm	510 mm	530 mm	560 mm	580 mm	610 mm
Top Tube (B)	505 mm	515 mm	525 mm	545 mm	560 mm	575 mm	590 mm
Reach (R)	374 mm	374 mm	377 mm	383 mm	385 mm	388 mm	389 mm
Stack (S)	527 mm	527 mm	552 mm	564 mm	591 mm	614 mm	638 mm
Seat Tube Angle (C)	76°	75°	75°	74°	73,5°	73°	72,5°
Steering Tube Angle (D)	71,8°	71,8°	72°	74°	73,5°	73,5°	74°
Chain-Stay Length (E)	400 mm	400 mm	400 mm	400 mm	402 mm	406 mm	406 mm
BB to Fork Length (F)	576 mm	576 mm	585 mm	592 mm	590 mm	599 mm	602 mm
Head Tube (H)	125 mm	125 mm	150 mm	162 mm	180 mm	204 mm	228 mm
Handlebar width out/out (M)	420 mm	440 mm	440 mm	440 mm	440 mm	440 mm	460 mm
Stem Length (N)	90 mm	100 mm	100 mm	110 mm	110 mm	120 mm	130 mm
