DESCRIPTION
Its beautiful shape and construction meet with advanced features, generally reserved for higher tier offerings such as internal cable routing.
The oversized bottom bracket and down tube meet with a reinforced head tube junction to resist torsional stress and result in an extremely efficient power transfer. No power loss to flex means more efficient riding, more energy for the final sprint and more speed for equivalent watts.
A more relaxed geometry gives additional comfort to the meticulously developed carbon layup created to confer both a reactive and comfortable structure. The straight fork and compact rear triangle make for an extra responsive handling performance, making the Venta agile enough for even the fastest most technical.
3B Clamp System Gen 2
A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.
The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.

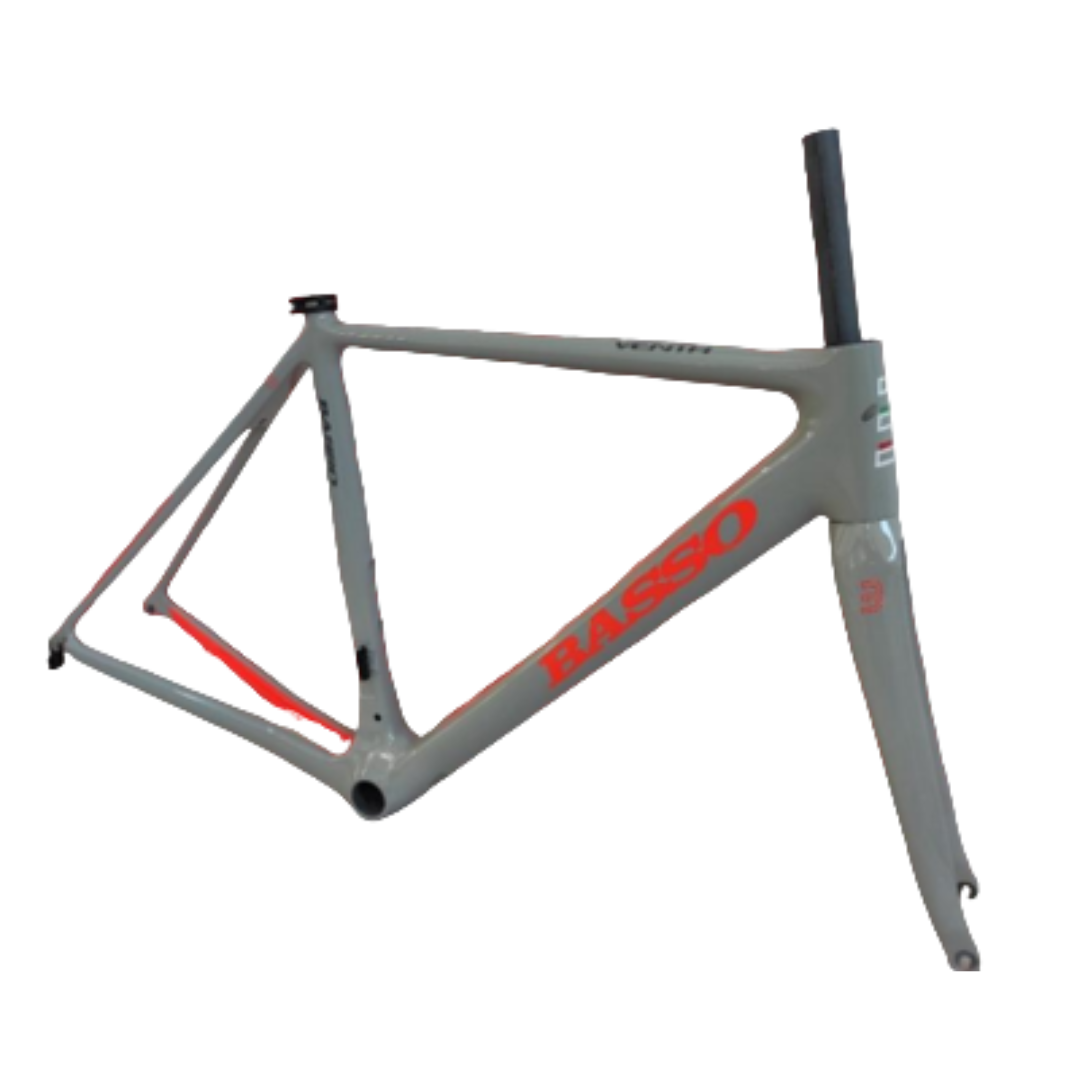

Note:- Product images are for representation purposes only and may vary slightly from the actual product.
GEOMETRY & SIZE GUIDE
Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike's performance and comfort for an efficient riding position.
| 45 | 48 | 51 | 53 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| SEAT TUBE (A1) | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| TOP TUBE (B) | 505 mm | 515 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| REACH (R) | 371,1 mm | 371,1 mm | 374,5 mm | 380,4 mm | 382,1 mm | 384,4 mm | 385,5 mm |
| STACK (S) | 538,9 mm | 538,9 mm | 563,4 mm | 575,9 mm | 602,4 mm | 625,4 mm | 650,4 mm |
| SEAT TUBE ANGLE (C) | 76° | 75° | 75° | 74° | 73,5° | 73° | 72,5° |
| STEERING TUBE ANGLE (D) | 71,8° | 71,8° | 72° | 72,3° | 73,5° | 73,5° | 74° |
| CHAIN-STAY LENGTH (E) | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 410 mm | 410 mm |
| BB TO FORK LENGTH (F) | 576,9 mm | 576,9 mm | 586,4 mm | 593,2 mm | 590 mm | 599 mm | 602 mm |
| HEAD TUBE (H) | 125 mm | 125 mm | 150 mm | 162 mm | 180 mm | 204 mm | 228 mm |
| HANDLEBAR WIDTH C/C (M) | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm | 420 mm | 440 mm |
| STEM LENGTH (N) | 90 mm | 90 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
