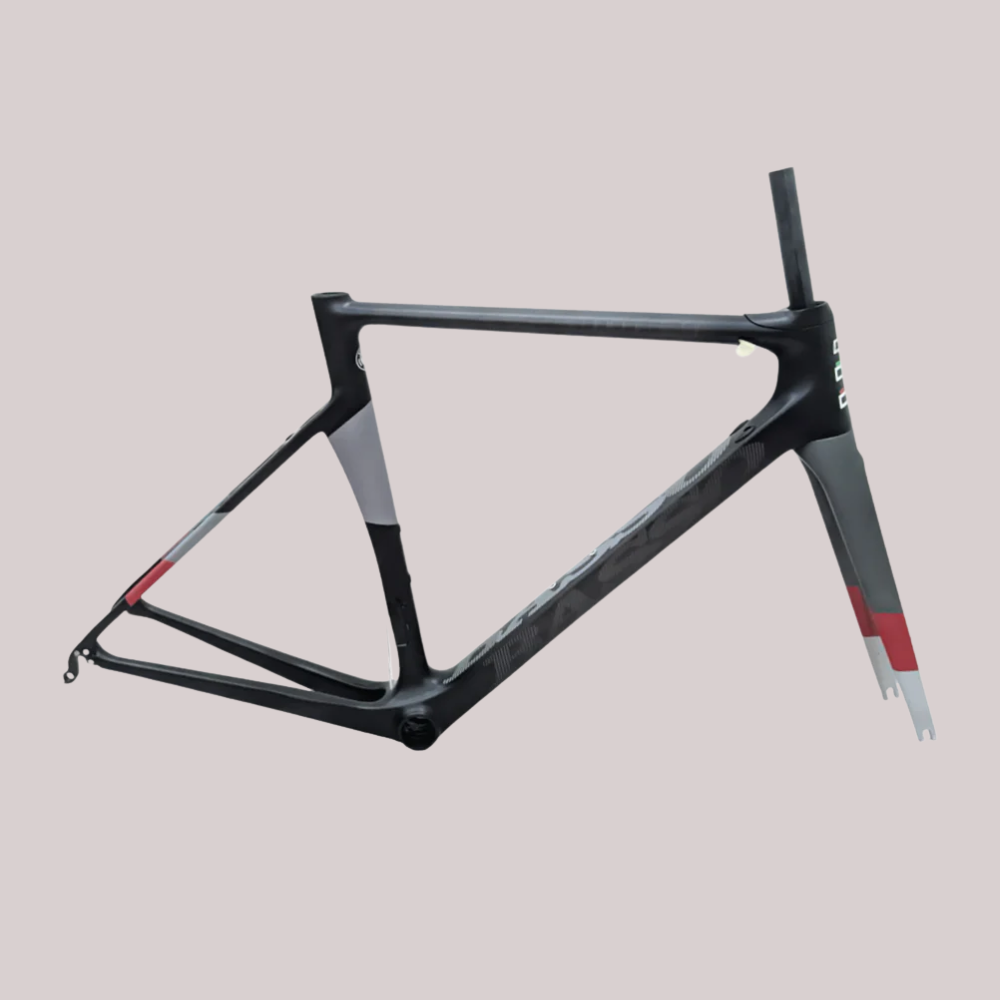

Basso Frame Diamante SV Rim (Black Anthracite)

Regular price: Rs. 189,990.00
Sale price: Rs. 189,990.00
Regular price
Unit price: per

Tax included. Shipping calculated at checkout.

Color

Frame Size

Quantity

Quantity must be 1 or more

Basso Diamante SV is perfectionism on the plan, surgical precision and obsession with performance.

Super Veloce, Super Versatile

While improving upon past success is never easy, taking an award-winning and universally lauded platform and making it not only faster but better proved to be a herculean task. Basso, thanks to its competitive nature and desire to evolve, enjoyed the challenge and the end result demonstrates the effort, attention to detail and passion that went into this project.

A perfect blend of carryover tech and new design make for a better, best Basso.

Construction

Size specific construction

Diamante SV’s carbon layup, tube diameters and construction vary in function with size. From 45 to 63, you will experience the same perfected riding quality.

Fork Performance design

Vertically compliant, horizontally rigid to confer unique handling precision and comfort on rough surfaces.

Rear triangle efficiency

Lower profile stays for rear triangle reactiveness.

3B Clamp system Gen 2

A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.

The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.

Tire clearance

Tire clearance up to 32mm for increased versatility and performance in any situation.

Geometry

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	45	48	51	53	56	58	61	63
SEAT TUBE (A1)	450 mm	480 mm	510 mm	530 mm	560 mm	580 mm	610 mm	630 mm
TOP TUBE (B)	505 mm	515 mm	525 mm	545 mm	560 mm	575 mm	590 mm	605 mm
REACH (R)	375 mm	375 mm	378 mm	384 mm	386 mm	389 mm	390 mm	398 mm
STACK (S)	523 mm	523 mm	548 mm	560 mm	587 mm	610 mm	634 mm	658 mm
SEAT TUBE ANGLE (C)	76°	75°	75°	74°	73,5°	73°	72,5°	72,5°
STEERING TUBE ANGLE (D)	71,8°	71,8°	72°	72,3°	73,5°	73,5°	74°	74,5°
CHAIN-STAY LENGTH (E)	404 mm	404 mm	404 mm	404 mm	406 mm	410 mm	410 mm	410 mm
BB TO FORK LENGTH (F)	574 mm	574 mm	583 mm	592 mm	590 mm	599 mm	602 mm	602 mm
HEAD TUBE (H)	101 mm	101 mm	126 mm	138 mm	156 mm	180 mm	203 mm	226 mm
HANDLEBAR WIDTH C/C (M)	400 mm	400 mm	420 mm	420 mm	420 mm	420 mm	440 mm	440 mm
STEM LENGTH (N)	90 mm	90 mm	100 mm	100 mm	110 mm	120 mm	120 mm	120 mm
STAND OVER HEIGHT	747 mm	766 mm	794 mm	811 mm	834 mm	855 mm	882 mm	903 mm
