Basso

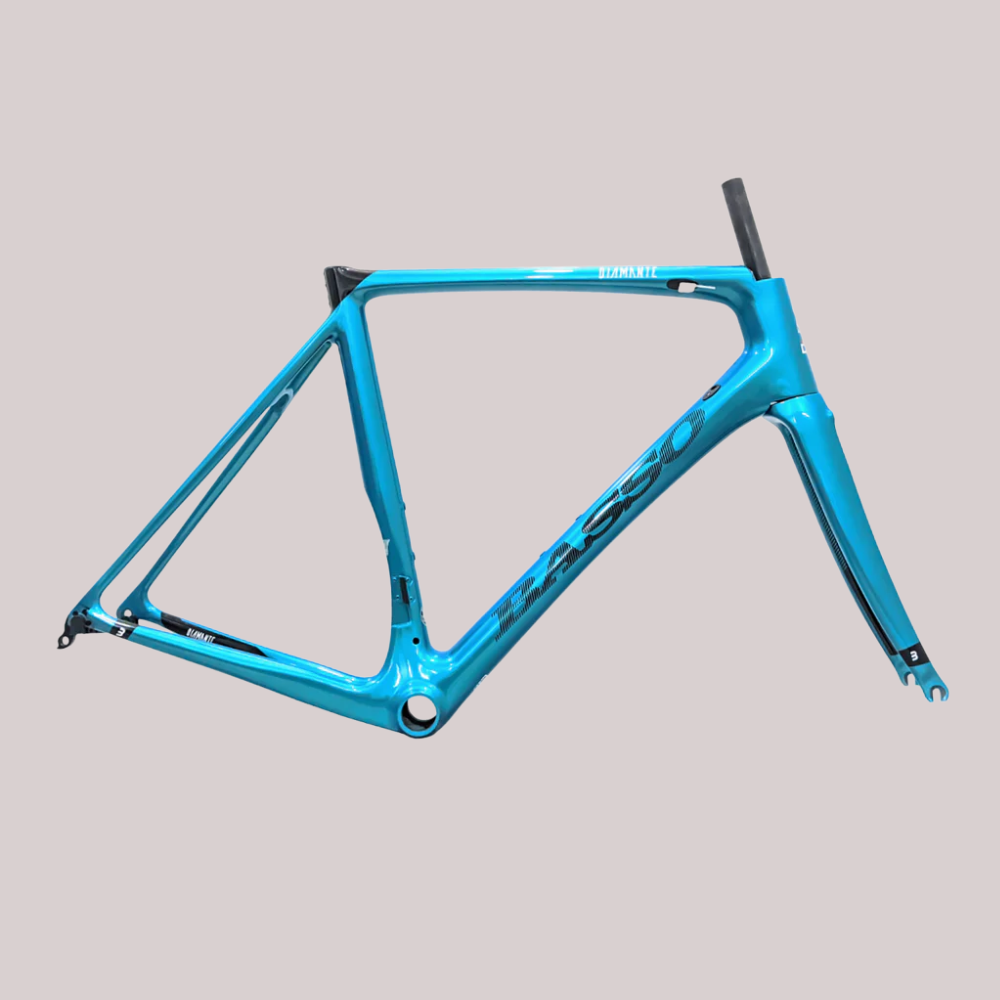

Basso Frame Diamante Rim (Neptuno)

SKU:9BATDINP-56

Rs. 189,990.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Frame Size 56

Color Neptuno

View full details

Geometry

How do you redefine a classic? By obsessively working on details, considering each arrival point as a new starting point. Diamante introduces improvements in the geometry that make it more performing uphill and downhill. Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	45	48	51	53	56	58	61
SEAT TUBE (A1)	450 mm	480 mm	510 mm	530 mm	560 mm	580 mm	610 mm
TOP TUBE (B)	505 mm	515 mm	525 mm	545 mm	560 mm	575 mm	590 mm
REACH (R)	374.9 mm	375.2 mm	378.6 mm	384.8 mm	386.9 mm	389 mm	390.7 mm
STACK (S)	521.7 mm	521.8 mm	546.2 mm	558.8 mm	584.3 mm	608 mm	632.2 mm
SEAT TUBE ANGLE (C)	76°	75°	75°	74°	73.5°	73°	72.5°
STEERING TUBE ANGLE (D)	71.3°	71.4°	71.6°	71.9°	73.1°	73.1°	73.6°
CHAIN-STAY LENGTH (E)	400 mm	400 mm	400 mm	400 mm	402 mm	402 mm	406 mm
BB TO FORK LENGTH (F)	579.3 mm	579.4 mm	589.1°	596.1°	593.5°	602.7 mm	606 mm
HEAD TUBE (H)	101 mm	101 mm	126 mm	138 mm	155 mm	180 mm	203 mm
HANDLEBAR WIDTH C/C (M)	400 mm	400 mm	420 mm	420 mm	420 mm	420 mm	440 mm
STEM LENGTH (N)	90 mm	90 mm	100 mm	100 mm	110 mm	120 mm	120 mm
