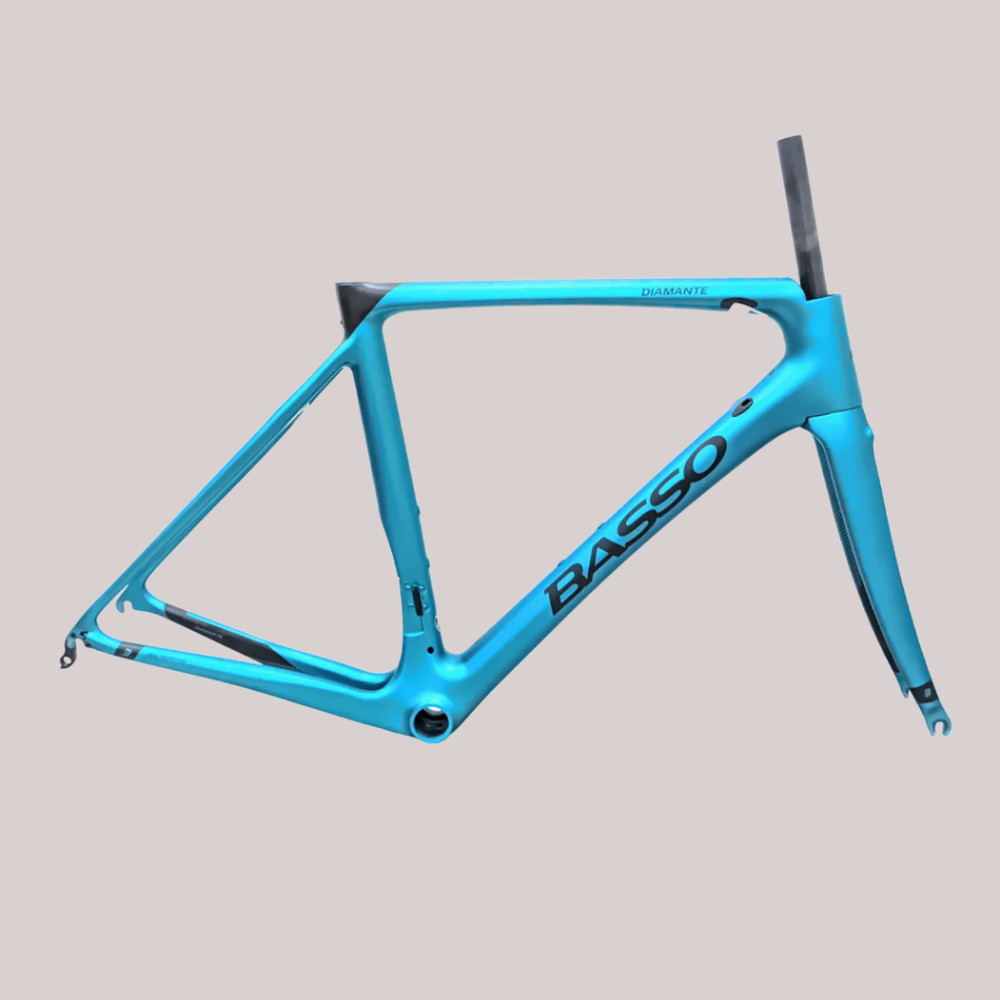

Basso Frame Diamante Disc (Electric Blue)

Regular price: Rs. 249,990.00
Sale price: Rs. 249,990.00
Regular price
Unit price: per

Tax included. Shipping calculated at checkout.

Color

Frame Size

Quantity

Quantity must be 1 or more

Basso Diamante Disc is a versatile road racing bike, designed to thrive in the most challenging ups and downs. A geometry that has been refined over the decades thanks to the kilometers traveled and the expertise in the manual processing of carbon, capable of achieving absolute performance through cutting-edge technological solutions. The result is an intense and engaging riding experience, ready to excite.

Devotion to the slopes

Today Basso Diamante Disc confirms its vocation for climbs and descents. Careful engineering work has made it possible to further reduce the weight by over 200 grams, allowing the complete bike assembly to remain easily under the UCI weight limit (6.8 kg). A bicycle without an extra gram, designed to make each ride an exciting experience, an opportunity to challenge your limits.

Contemporary classic

A unique design, the result of extremely complex engineering, refined over the years detail by detail. A timeless aesthetic, capable of interpreting the contemporary. The search for the balance between lightness and stability, making the most of the characteristics of carefully hand-crafted carbon. The thickness of the tubes has been meticulously studied to give lightness and reactivity when climbing and stability when descending, even at high speeds.

Ride, Perfected

Stable, responsive, light, and playful. Basso Diamante Disc is a versatile road racing bike, designed to thrive in the most challenging ups and downs. A geometry that has been refined over the decades thanks to the kilometers traveled and the expertise in the manual processing of carbon, capable of achieving absolute performance through cutting-edge technological solutions. The result is an intense and engaging riding experience, ready to excite.

Note:- Product images are for representation purposes only and may vary slightly from the actual product.

Geometry

How do you redefine a classic? By obsessively working on details, considering each arrival point as a new starting point. Basso Diamante Disc introduces improvements in the geometry that make it more performing uphill and downhill. Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	45	48	51	53	56	58	61
SEAT TUBE (A1)	450 mm	480 mm	510 mm	530 mm	560 mm	580 mm	610 mm
TOP TUBE (B)	505 mm	515 mm	525 mm	545 mm	560 mm	575 mm	590 mm
REACH (R)	374.9 mm	375.2 mm	378.6 mm	384.8 mm	386.9 mm	389 mm	390.7 mm
STACK (S)	521.7 mm	521.8 mm	546.2 mm	558.8 mm	584.3 mm	608 mm	632.2 mm
SEAT TUBE ANGLE (C)	76°	75°	75°	74°	73.5°	73°	72.5°
STEERING TUBE ANGLE (D)	71.3°	71.4°	71.6°	71.9°	73.1°	73.1°	73.6°
CHAIN-STAY LENGTH (E)	400 mm	400 mm	400 mm	400 mm	402 mm	402 mm	406 mm
BB TO FORK LENGTH (F)	579.3 mm	579.4 mm	589.1°	596.1°	593.5°	602.7 mm	606 mm
HEAD TUBE (H)	101 mm	101 mm	126 mm	138 mm	155 mm	180 mm	203 mm
HANDLEBAR WIDTH C/C (M)	400 mm	400 mm	420 mm	420 mm	420 mm	420 mm	440 mm
STEM LENGTH (N)	90 mm	90 mm	100 mm	100 mm	110 mm	120 mm	120 mm

Basso-Road-Bike-Venta-Disc-Size-Guide
