Basso Astra disc is developed around people’s lives to make it suitable for various occasions, even very different from each other. Its features are designed with a very specific purpose: to amplify the lifestyle of those who get on the saddle, whatever their definition of cyclist.
True to its Basso DNA, the Astra is a thoroughbred racehorse ready to take you further, faster and with more confidence. The straight fork and rear triangle take design cues from their higher tier siblings in the Basso family and as such incorporate a similar level of reactive and responsive handling. Basso developed geometry studied to confer the perfect blend of snappy handling and acceleration and a comfortable position for the long haul.
Some bikes can be customized, Astra was created to be one.

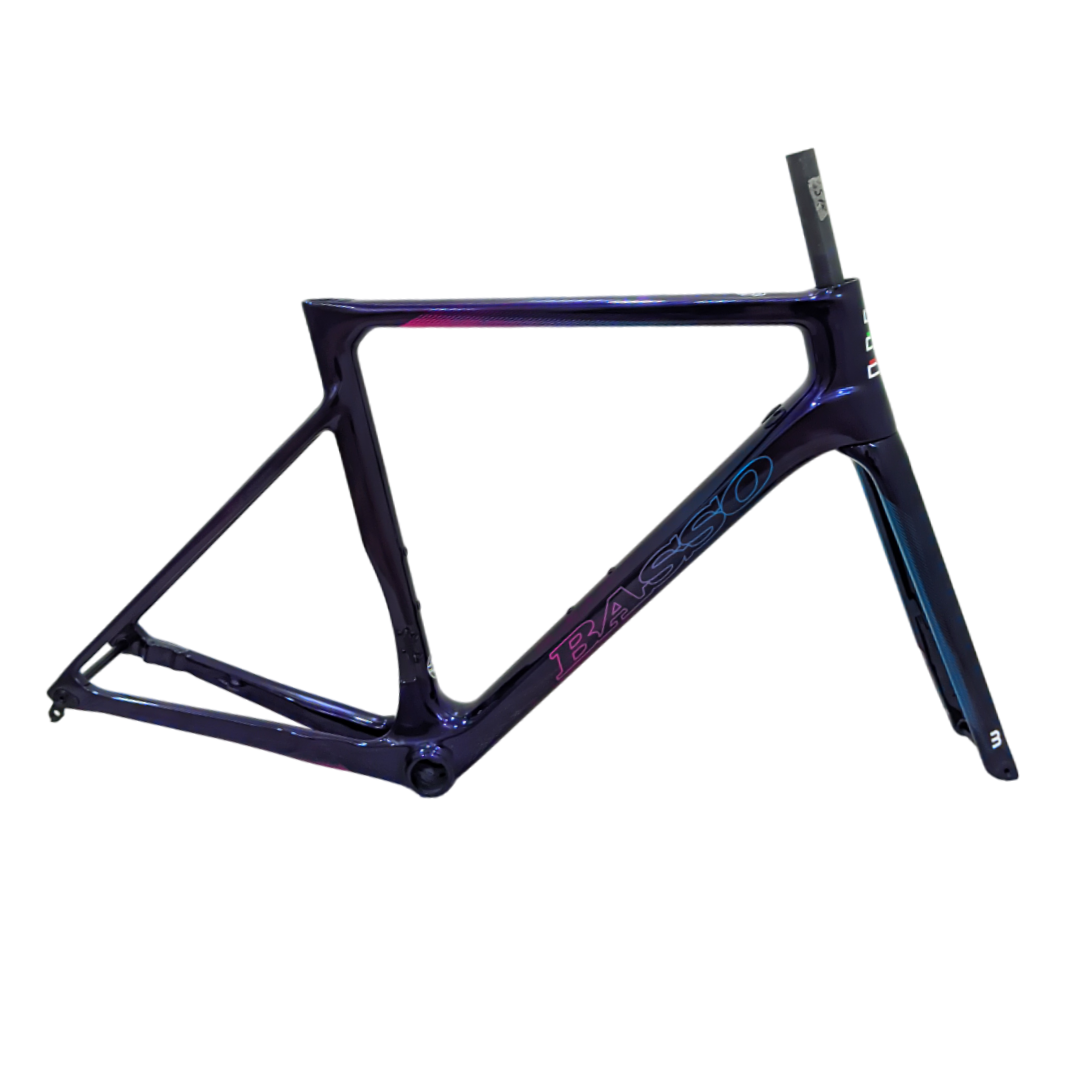

Basso Astra Disc Frameset
Embark on a journey of speed and confidence with the Basso Astra Disc Frameset – a true thoroughbred racehorse designed to propel you further and faster, while instilling unwavering confidence in your ride.
Versatility and completeness
Astra maintains its vocation for road cycling, but the attention to detail has made it less nervous and more comfortable. Light but without pushing the carbon of the frame to the extreme (which weighs about 980 g), it adopts Basso’s high-profile technological solutions.
The 35 mm tire clearance allows you to mount wider tires and venture beyond the tarmac on light dirt roads. The integrated cables with Paradigma technology and the All Road handlebar by Microtech increase safety and comfort, while maintaining clean aesthetics.
3B Clamp system Gen 2
A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.
The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.
TECHNOLOGIES
Note:- Product images are for representation purposes only and may vary slightly from the actual product.
SPECIFICATIONS
|
· Frame |
Astra carbon monocoque construction 100% 3K Torayca HMCF T700-MR60 |
|
· Fork |
Astra carbon monocoque construction 100% 3K Torayca HMCF T700-MR60 |
|
· Seat Post Clamp |
3B Gen 2 Seatpost Clamp |
|
· Front Thru Axle |
Basso Standard 125mm x 12mm |
|
· Rear Thru Axle |
Basso Explorer 165mm x 12mm |
|
· Hanger |
Basso Disc Standard |
|
· Headset |
Microtech Integrated Cables HeadSet |
|
· Spacers |
Spacers already included: 3 x 5 mm |
|
· Seatpost |
Heart Carbon -15 mm Seatpost |
GEOMETRY
Astra’s geometry is the most Basso of all, derived from the steel models. A platform improved year after year, preserving the racing DNA but making it transversal and able to adapt to those who are not an athlete who ride bikes every day. An evergreen consistent with its past, but capable of perfecting itself from model to model becoming more versatile.
| Size | 45 | 48 | 51 | 53 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| SEAT TUBE (A1) | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| TOP TUBE (B) | 505 mm | 515 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| REACH (R) | 371,1 mm | 371,1 mm | 374,5 mm | 380,4 mm | 382,1 mm | 384,4 mm | 385,5 mm |
| STACK (S) | 538,9 mm | 538,9 mm | 563,4 mm | 575,9 mm | 602,4 mm | 625,4 mm | 650,4 mm |
| SEAT TUBE ANGLE (C) | 76° | 75° | 75° | 74° | 73,5° | 73° | 72,5° |
| STEERING TUBE ANGLE (D) | 71,8° | 71,8° | 72° | 72,3° | 73,5° | 73,5° | 74° |
| CHAIN-STAY LENGTH (E) | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 410 mm | 410 mm |
| BB TO FORK LENGTH (F) | 576,9 mm | 576,9 mm | 586,4 mm | 593,2 mm | 590 mm | 599 mm | 602 mm |
| HEAD TUBE (H) | 125 mm | 125 mm | 150 mm | 162 mm | 180 mm | 204 mm | 228 mm |
| HANDLEBAR WIDTH C/C (M) | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm | 420 mm | 440 mm |
| STEM LENGTH (N) | 90 mm | 90 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
