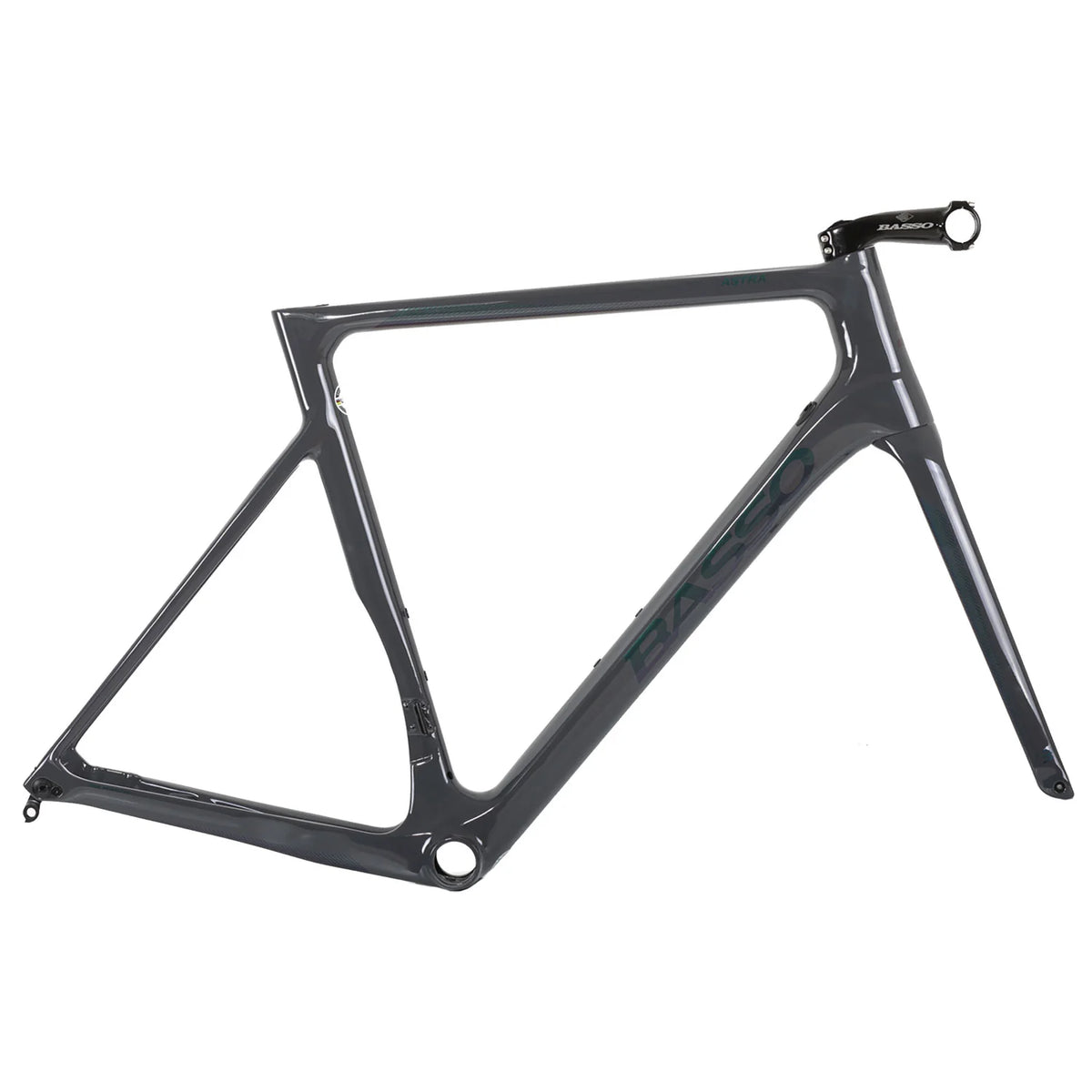

True to its Basso DNA, the Astra is a thoroughbred racehorse ready to take you further, faster and with more confidence. The straight fork and rear triangle take design cues from their higher tier siblings in the Basso family and as such incorporate a similar level of reactive and responsive handling. Basso developed geometry studied to confer the perfect blend of snappy handling and acceleration and a comfortable position for the long haul.
Specification
|
· Frame |
Astra carbon monocoque construction 100% 3K Torayca HMCF T700-MR60 |
|
· Fork |
Astra carbon monocoque construction 100% 3K Torayca HMCF T700-MR60 |
|
· Seat Post Clamp |
3B Gen 2 Seatpost Clamp |
|
· Front Thru Axle |
Basso Standard 125mm x 12mm |
|
· Rear Thru Axle |
Basso Explorer 165mm x 12mm |
|
· Hanger |
Basso Disc Standard |
|
· Headset |
Microtech Integrated Cables HeadSet |
|
· Stem |
Paradigma Stem |
|
· Spacers |
Spacers already included: 3 x 5 mm |
|
· Handlebar Tape |
Logo Handlebar Tape 2 mm |
|
· Seatpost |
Heart Carbon -15 mm Seatpost |

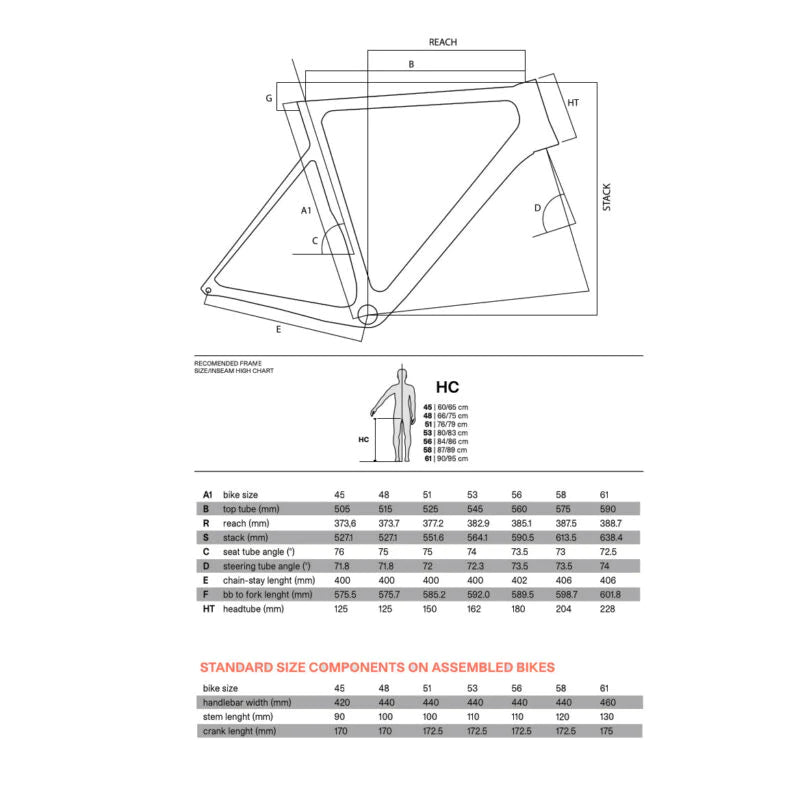

GEOMETRY & SIZE GUIDE
Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike's performance and comfort for an efficient riding position.
| 45 | 48 | 51 | 53 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| SEAT TUBE (A1) | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| TOP TUBE (B) | 505 mm | 515 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| REACH (R) | 371,1 mm | 371,1 mm | 374,5 mm | 380,4 mm | 382,1 mm | 384,4 mm | 385,5 mm |
| STACK (S) | 538,9 mm | 538,9 mm | 563,4 mm | 575,9 mm | 602,4 mm | 625,4 mm | 650,4 mm |
| SEAT TUBE ANGLE (C) | 76° | 75° | 75° | 74° | 73,5° | 73° | 72,5° |
| STEERING TUBE ANGLE (D) | 71,8° | 71,8° | 72° | 72,3° | 73,5° | 73,5° | 74° |
| CHAIN-STAY LENGTH (E) | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 410 mm | 410 mm |
| BB TO FORK LENGTH (F) | 576,9 mm | 576,9 mm | 586,4 mm | 593,2 mm | 590 mm | 599 mm | 602 mm |
| HEAD TUBE (H) | 125 mm | 125 mm | 150 mm | 162 mm | 180 mm | 204 mm | 228 mm |
| HANDLEBAR WIDTH C/C (M) | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm | 420 mm | 440 mm |
| STEM LENGTH (N) | 90 mm | 90 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
