OVERVIEW
A SMART TRAINER THAT CHECKS ALL THE BOXES

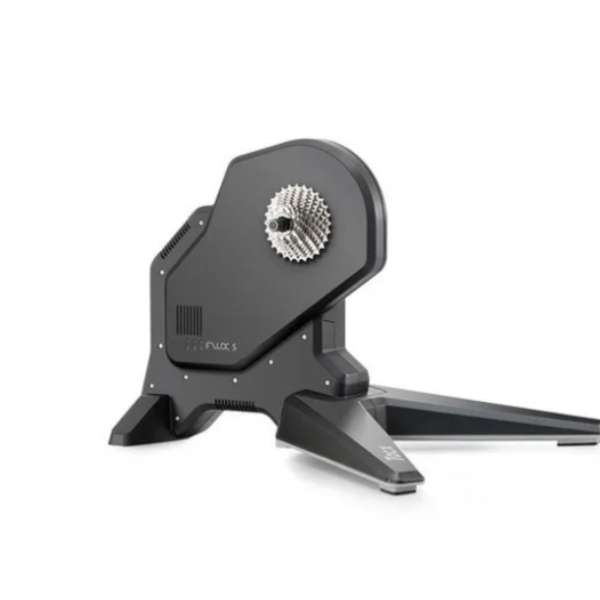

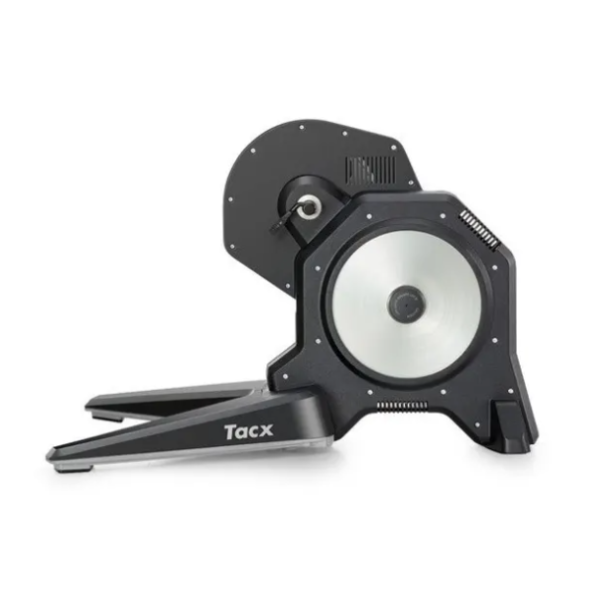

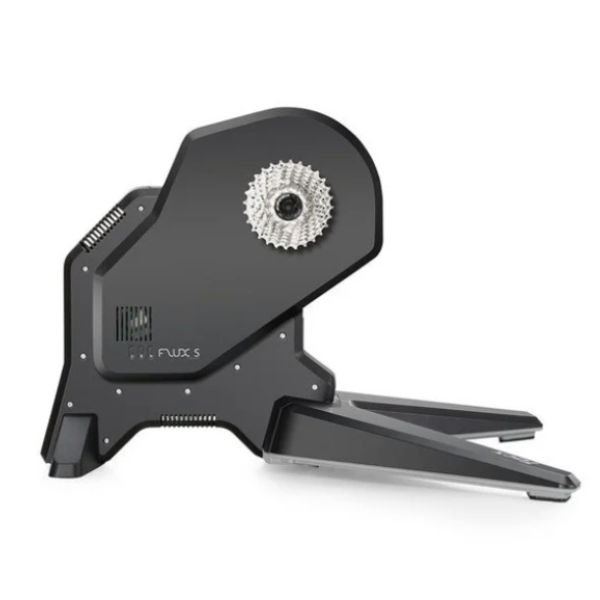

Looking for a smart direct-drive trainer? FLUX S Smart is the ideal indoor training companion — made to help you sweat while cycling with your favorite apps.
You care a lot. So we measure your data to within 3% accuracy.
Go ahead and launch into full beast mode. This trainer is extra quiet.
Climb that leaderboard with your favorite apps, including Zwift and Tacx.
Feel the burn. Simulated inclines can withstand your hardest sprints.
Ride full out or standing on the pedals. This trainer can take it.
IN THE BOX
- Flux S Smart Trainer
- Quick release for road bikes and mountain bikes (5 mm)
- Axle end caps for use with 142 x 12 mm and 148 x 12 mm thru axles
- 1-month Tacx Premium software
- 1-month Zwift membership software trial
GENERAL
| DIMENSION | 26.4" x 25.3" (670 x 642 mm) |
|---|---|
| HEIGHT | 18.1" (460 mm) |
| WEIGHT |
50.3 lbs (22.8 kg) |
CONNECTIVITY
| WIRELESS COMMUNICATION |
ANT+ connectivity, BLUETOOTH wireless technology |
|---|---|
| CONTROL BY |
Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna |
| READ OUT ON |
Smartphone, tablet, bike computer, computer with ANT+ antenna |
Indoor Training Features
| MAGNETS | 8 permanent ferrite magnets and 8 electromagnets |
|---|---|
| ELECTRICAL REQUIREMENT | 110-240 V |
| SUITABLE CASSETTES |
Shimano/SRAM 9 to 11 speed Campagnolo SRAM XD and XDR body (sold separately) Not suitable for specialized SCS system. Shimano 12-speed Hyperglide+ |
| SUITABLE AXLES |
Direct Drive quick release axle (130 mm/135 mm X 5 mm) for bikes with quick release axle Thru axle end caps (142 mm/148 mm X 12 mm) for bikes with thru-axle For bike dimensions outside of the industry standard, Garmin offers this adapter set as an additional accessory: 135 mm Thru-Axle Adapter Set [10 x 135 Non-drive Side (NDS), 12 x 135 NDS and 10 x 135 Drive-side (DS)]. |
| MAX POWER | 1500 watt |
| MAX INCLINE | 10% |
| MAX TORQUE | 22.1 Nm |
| MAX BRAKE FORCE | 65N |
| FLYWHEEL | 15.4 lbs (7 kg) |
| MASS INERTIA | 50.3 lbs (22.8 kg) |
| CALIBRATION | Spin down |
| OUTPUT | Speed, cadence, power |
| ACCURACY | <3% |
| MEASURED SPEED | YES |
| MEASURED CADENCE | YES |
| MEASURED POWER |
